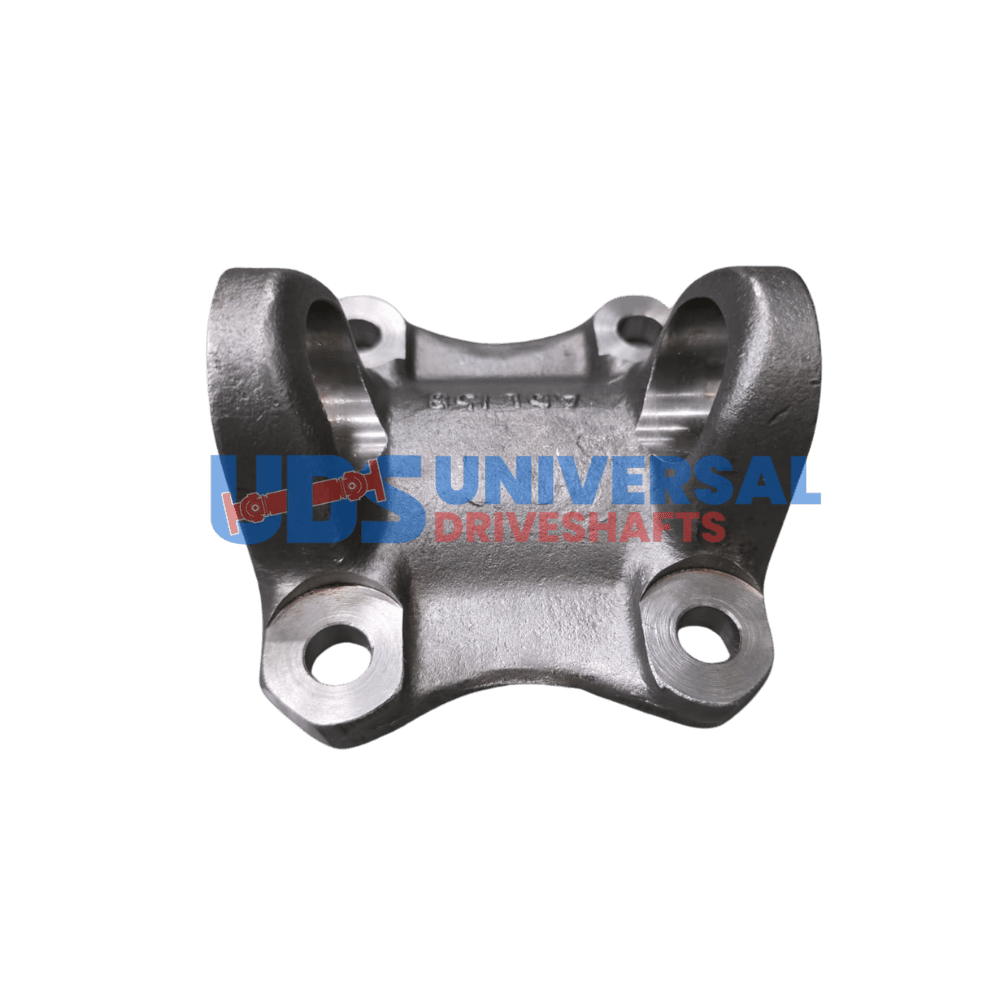

3-2-489 | Flange Yoke 1480 Ser’ , Bolt Holes: 4 x 0.500 , Bolt Circle Dia 4.750 , Pilot: 3.750M
$37.30
17 in stock
13
People watching this product now!
Description
3-2-489 UDS 1480 flange yoke. 4-hole, 4.750″ bolt circle, 3.750″ pilot, 1.500″ CJ-to-face. Verify bolt circle and pilot before ordering.
Full Description
3-2-489 UDS 1480 Flange Yoke
The 3-2-489 is a 1480 series flange yoke manufactured by UDS. It bolts to a companion flange on the transmission, transfer case, or differential output using a 4-bolt pattern on a 4.750-inch bolt circle. The 3.750-inch pilot diameter registers the yoke concentrically against the companion flange to minimize runout.
The 4 bolt holes are 0.500-inch diameter on the 4.750-inch bolt circle. The center-U-joint-to-flange-face dimension is 1.500 inches. This 1480 series yoke accepts a 1480 U-joint in the yoke ears — the ear bore is machined specifically for the 1480 cap diameter. Application note: Rectangular Bolt Pattern 3.053 x 3.639". The 1480 series ranks above 1410 in torque capacity, with a 1.375-inch cap diameter, suited for heavy-duty commercial trucks and large SUVs.
Specifications
- Part Number: 3-2-489
- Brand: UDS
- Series: 1480
- Bolt circle dia: 4.750
- Bolt hole dia: 0.500
- Cj to flat: 1.500
- Pilot dia: 3.750
- Bolt Holes: 4
- Notes: Rectangular Bolt Pattern 3.053 x 3.639"
Fitment & Installation Notes
Before ordering the 3-2-489, measure the bolt circle diameter and pilot diameter on the companion flange. The bolt circle (4.750") and pilot (3.750") must match exactly. A 1480 U-joint is required — do not install a different-series joint in these ears.
Browse the complete Flange Yokes catalog including circular and rectangular bolt patterns across 1480 and adjacent series.
Additional information
| Bolt circle dia | 4.750 |
|---|---|
| Bolt hole dia | 0.500 |
| Cj to flat | 1.500 |
| Partn number | 3-2-489 |
| Pilot dia | 3.750 |
| Series | 1480 |
| Bolt Holes | 4 |
| Notes | Rectangular Bolt Pattern 3.053 x 3.639″ |
