3-2-2209 1350 Series U Joint TOYOTA Flange 4 Holes PILOT 1.811 60 X 60 Pattern
$49.52
+50 in stock
20
People watching this product now!
Description

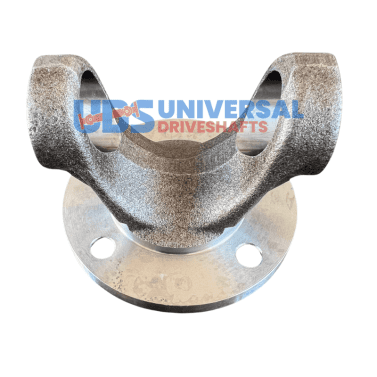

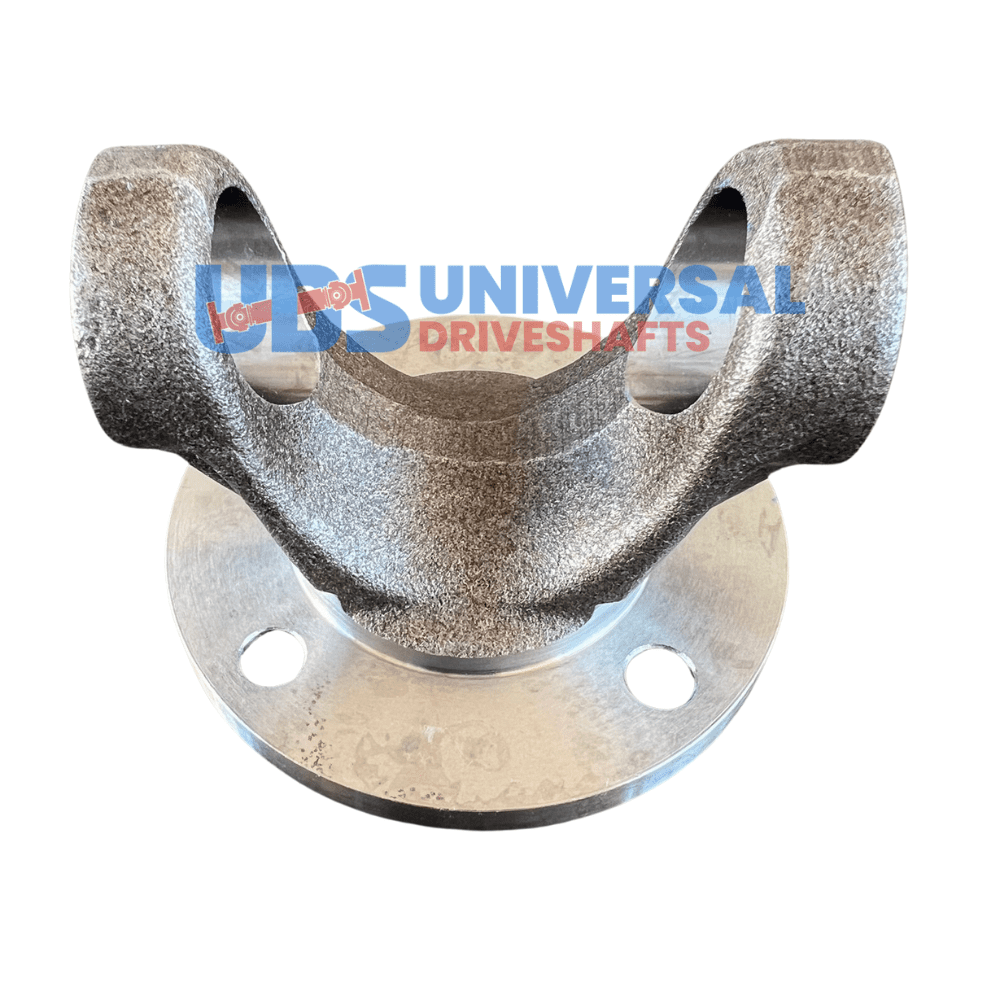

3-2-2209 Flange Yoke — 1350 series, 3.340 bolt circle | 1.811 pilot | 4×0.410 bolt holes | 1.750″ CJ-to-flat. Genuine bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
Replacing a worn or damaged flange yoke starts with getting the right part. The 3-2-2209 flange yoke is dimensioned for one bolt circle, one pilot diameter, and one drivetrain series — 1350 series. A mismatched bolt circle means the yoke won't seat flat. A wrong pilot means the driveshaft runs off-center. The 3-2-2209 flange yoke removes both risks.
3-2-2209 Flange Yoke — 1350 Series Specifications & Fitment
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3-2-2209 flange yoke specs: 3.340 bolt circle | 1.811 pilot | 4x0.410 bolt holes | 1.750" CJ-to-flat. TOYOTA. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 3-2-2209 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1350 — built for 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Bolt circle: 3.340 — must match axle/diff flange hole pattern exactly
- Pilot dia: 1.811 — centers yoke on companion flange, no play allowed
- 4 bolt holes at 0.410 — verify hole count and size
- CJ-to-flat: 1.750" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
- Note: TOYOTA
Specifications
- SKU: 3-2-2209
- Brand: UDS
- Series: 1350
- Bolt Circle: 3.340
- Pilot Dia: 1.811
- Bolt Holes: 4
- Bolt Hole Dia: 0.410
- CJ to Flat: 1.750"
- Notes: TOYOTA
Additional information
| Partn number |
3-2-2209 |
|---|---|
| Pilot dia |
1.811 |
| Bolt circle dia |
3.340 |
| Bolt hole dia |
0.410 |
| Series |
1350 |
| Brand |
UDS |
| Notes |
TOYOTA |
| Bolt Holes |
4 |
| Cj to flat |
1.750 |
