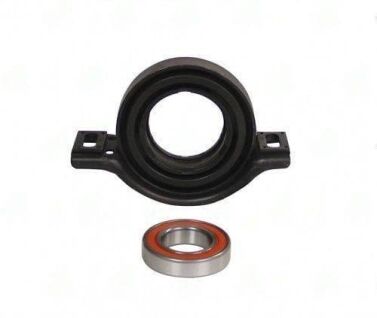

2880-19 – Center Support Bearing – Mercedes Application – 1.181″ ID – 500″ Center Bearing To Base

Q: Three SKUs (2880-19, 2880-45, 2880-60) list 1.181" bore and 0.500" height for Mercedes. How do I choose? A: All three are genuine Mercedes applications at these dimensions but serve different model series. The 2880-60 is in an older production series; 2880-45 and 2880-19 cover later or different models. The OEM part number from the removed center support bearing is the only reliable selection method.

Q: What happens if I install the wrong 0.500" Mercedes center bearing? A: If the bracket arm angle is wrong even by 5 degrees, the bearing outer race will experience continuous side-loading from the misaligned driveshaft. This side-loading fatigues the rubber bond and the ball bearing inner race asymmetrically, typically resulting in failure within 20,000--30,000 miles rather than the normal 100,000+ mile service life.

Q: Is the rubber compound in all three 0.500" Mercedes SKUs the same? A: No. Mercedes specifies different durometer rubber compounds for different model platforms, tuned for each chassis's propshaft resonant frequency. A C-Class (high-revving 4-cylinder) isolator will be stiffer than an E-Class V8 isolator even at the same nominal dimensions.
