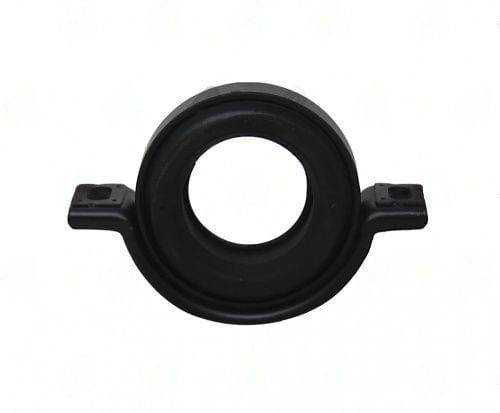

2880-15 – Center Support Bearing – Mercedes Application – 1.181″ ID – 5.000″ Ctr To Ctr Of Mount Hole

The 2880-15 uses a 5.000" (127 mm) mounting hole center-to-center span -- the largest in the Mercedes fixed-hole bracket series for 30 mm bore applications. This bolt pattern is used on larger Mercedes models (likely S-Class or G-Class variants) where the wider crossmember structure accommodates a larger mounting footprint.

• Bore ID: 1.181" (30 mm) -- verify stub shaft OD before pressing
• Mounting hole spacing: 5.000" center-to-center -- the widest standard spacing in the Mercedes 30 mm center bearing range
• Wider bolt pattern distributes the bracket load across more of the crossmember, providing greater resistance to bracket fatigue in high-torque applications
• The center support bearing rubber isolator compound is tuned for the model's specific propshaft resonance

Tip: on larger Mercedes models (S-Class, G-Class), the propshaft center bearing carries higher torque loads than on compact models. When inspecting a failed 2880-15, check for rotational witness marks on the stub shaft from inner race spin -- large Mercedes models with worn centers have been known to allow inner race rotation, which destroys the stub shaft journal and requires propshaft section replacement in addition to the center bearing.
