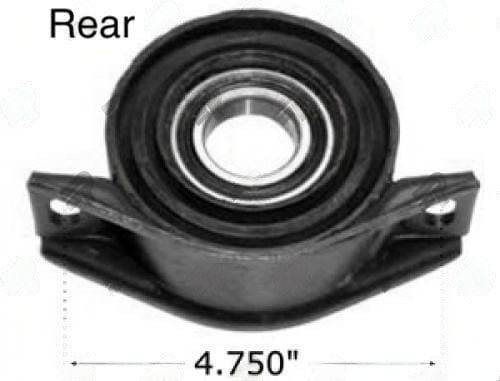

2880-10 – Center Support Bearing – Mercedes Application – 1.181″ ID – 800″ Center Bearing To Base
$48.90
10 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 0.800″ center-to-base height; compact rubber-isolated assembly for Mercedes two-piece propshaft low-drop hanger brackets.
Full Description
2880-10 -- Mercedes-Benz Center Support Bearing, 30 mm Bore, 0.800"
The 2880-10 uses a 0.800" center-to-base height -- between the 0.750" and 0.965" variants in the Mercedes compact bracket range. This application-specific dimension appears on Mercedes models where the crossmember geometry places the bearing seat at exactly 0.800" below the mounting face.
A verification warning for this unit: the 0.800" dimension is close to both 0.750" and 0.965" adjacent SKUs. A technician measuring the removed bearing with a standard rule (not digital calipers) will likely read all three as "about 3/4 to 1 inch" without distinguishing between them. Digital calipers set to 0.001" resolution are required to correctly identify this unit. At Mercedes quality specifications, the difference between a correct 0.800" bearing and an incorrect 0.750" or 0.965" substitute will produce a noticeable residual vibration. Mercedes OEM references for this height range are in the A 210 and A 211 series; confirm via STAR ETK by VIN for the correct center support bearing.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 800 |
| Ctr to ctr of mount holes | 4.750 |
| Notes | 300SD, 380SE, 380SEC, 380SEL, 500SEC, 500SEL, CB comes complete w/bearing |
| Partn number | 2880-10 |
