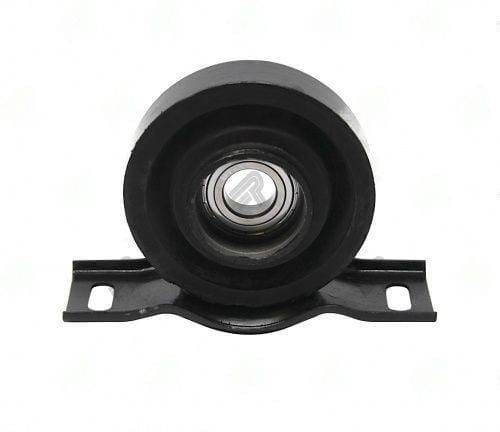

2680-10 – 10 – Center Support Bearing – 985″ ID – 2.500″ Center Bearing To Base
$83.64
10 in stock
19 People watching this product now!
Description
2680-10 center bearing — Mazda/Ford B1600/Courier 1972-1981. Bearing ID: 0.985″. Center-to-base: 2.500″. Mount spacing: 5.875″.
Full Description
The 2680-10 fits the Mazda B1600 and Ford Courier compact pickup trucks from 1972 to 1981. These vehicles shared the same drivetrain platform - the Ford Courier was a rebadged Mazda B-series truck sold in North American markets. Both use an identical two-piece driveshaft center bearing specification.
Unlike offset-bracket bearings in the 2680 series, the 2680-10 uses a symmetric 2.500" center-to-base dimension, meaning both brackets mount at the same height below the bearing centerline. This indicates the chassis mounting surface is perpendicular to the driveshaft at the bearing location.
| Specification | Value |
|---|---|
| Part Number | 2680-10 |
| Application | Mazda B1600 / Ford Courier 1972-1981 |
| Bearing ID | 0.985" |
| Center-to-Base | 2.500" |
| Mount Hole Spacing | 5.875" |
The 5.875" mount hole spacing is smaller than the 6.625" used on later Mazda applications (2680-20, 2680-40, 2680-50), confirming these are not interchangeable between generations. The B1600/Courier platform predates the GLC and uses a narrower crossmember mounting span. Verify year and model before ordering.
Browse all center support bearings.
Additional information
| Application | MULTIPLE |
|---|---|
| Bearing id | 985 |
| Center bearing to base | 2.500 |
| Ctr to ctr of mount holes | 5.875 |
| Notes | Mazda Ford B1600/Courier (72-81) |
| Partn number | 2680-10 |
