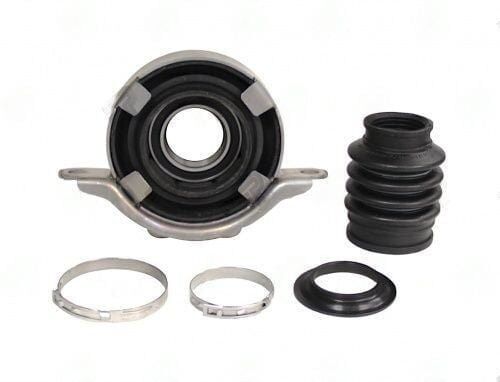

2580-67 – 67 – Center Support Bearing – 1.378″ ID – 1.000″ Center Bearing To Base

The 2580-67 center support bearing supports the midshaft section of a two-piece driveshaft, keeping it running concentric with the vehicle's drivetrain axis. When this bearing fails, the midshaft droops and the driveshaft angles change — you'll feel it as a vibration that gets progressively worse at highway speed. The 2580-67 center support bearing is the correct replacement, with the exact inner diameter and mount hole spacing your application requires.

2580-67 Center Support Bearing — Dimensions & Mount Specs

The 2580-67 center support bearing specs: 1.378" inner dia | 1.000" center-to-base | 5.500" mount spacing. Inner diameter must match the midshaft stub OD exactly — a loose fit allows the bearing to walk on the shaft, which causes vibration and accelerates wear on both the bearing race and the shaft surface. Mount hole center-to-center spacing must match your crossmember bracket.

When replacing a center support bearing on a two-piece shaft, replace the complete assembly — bearing race, rubber isolator, and bracket together. A new race in an old hardened rubber mount still vibrates. The rubber isolator is what actually absorbs the midshaft movement; without it the bearing transmits every frequency directly to the frame.

Key Features

• Bearing inner dia: 1.378" — must match midshaft stub OD exactly
• Center-to-base: 1.000" — height from shaft centerline to mounting surface
• Mount hole spacing: 5.500" — must match crossmember bracket exactly
• Complete assembly — bearing race, rubber isolator, and bracket as one unit
• Rubber isolator included — absorbs midshaft vibration, reduces NVH to frame

Specifications

• SKU: 2580-67
• Brand: UDS
• Bearing ID: 1.378"
• Center to Base: 1.000"
• Mount Hole Spacing: 5.500"
