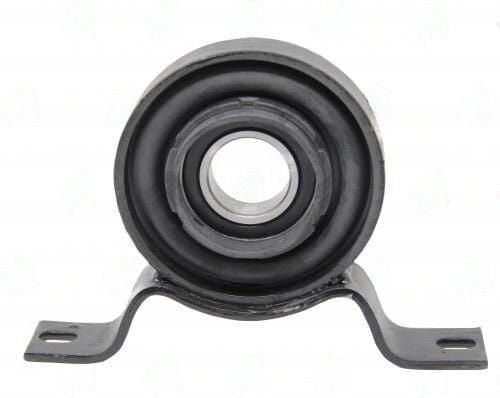

2580-20 – Center Support Bearing – Audi Application – 1.181″ ID – 2.875″ Center Bearing To Base
$121.13
1 in stock
Description
2580-20 center support bearing, Audi application, 1.181″ bore, 2.875″ center-to-base height, 6.000″ mount hole spacing.
Full Description
The 2580-20 is a mid-height Audi 2580 center support bearing at 2.875" center-to-base, paired with a 6.000" mount span. The 2.875" height is a non-round number -- it distinguishes this part precisely from the 2580-25 (2.750") and 2580-30 (2.750") that share the same bore. Even a 0.125" height difference shifts the propshaft angle enough to produce vibration at highway speeds.
- Part: 2580-20 | Application: Audi (longitudinal AWD)
- Bore: 1.181" | Center-to-base: 2.875" | Mount span: 6.000"
- Sealed bearing with bonded rubber isolator -- no disassembly
- Cross-check height before ordering -- several 2580 units share the 6.000" span
Installation tip: Audi recommends coating the stub shaft with a light film of grease before installing the bearing inner race. A dry press-fit in cold weather can gall the shaft surface and prevent the bearing from seating fully, leaving 0.010-0.020" of axial gap that allows the shaft to walk inside the race under braking.
Additional information
| Application | Audi |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.875 |
| Ctr to ctr of mount holes | 6.000 |
| Notes | Double check centerline to centerline and bearing height. |
| Partn number | 2580-20 |
