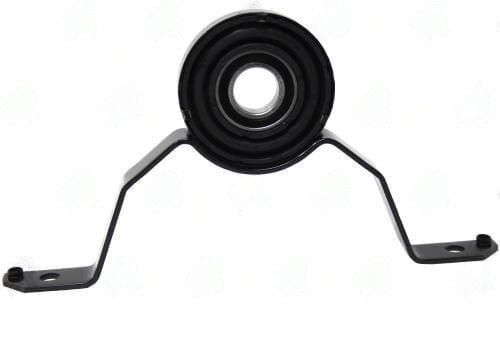

2580-11 – Center Support Bearing – Audi A8/ S8 Application – 1.181″ ID – 4.921″ Center Bearing To Base
$127.92
10 in stock
17 People watching this product now!
Description
2580-11 Center Support Bearing — AUDI A8/ S8 series, 1.181″ inner dia | 4.921″ center-to-base | 11.102″ mount spacing. Genuine replacement. Verify inner dia and mount spacing.
Full Description
The 2580-11 center support bearing supports the midshaft section of a two-piece driveshaft, keeping it running concentric with the vehicle's drivetrain axis. When this bearing fails, the midshaft droops and the driveshaft angles change — you'll feel it as a vibration that gets progressively worse at highway speed. The 2580-11 center support bearing is the correct replacement for AUDI A8/ S8 series applications, with the exact inner diameter and mount hole spacing your application requires.
2580-11 Center Support Bearing — AUDI A8/ S8 Series Dimensions & Mount Specs
The 2580-11 center support bearing specs: 1.181" inner dia | 4.921" center-to-base | 11.102" mount spacing. Application: AUDI A8/ S8 series. Inner diameter must match the midshaft stub OD exactly — a loose fit allows the bearing to walk on the shaft, which causes vibration and accelerates wear on both the bearing race and the shaft surface. Mount hole center-to-center spacing must match your crossmember bracket.
When replacing a center support bearing on a two-piece shaft, replace the complete assembly — bearing race, rubber isolator, and bracket together. A new race in an old hardened rubber mount still vibrates. The rubber isolator is what actually absorbs the midshaft movement; without it the bearing transmits every frequency directly to the frame.
Key Features
- Application: AUDI A8/ S8 series — verify your driveshaft series matches
- Bearing inner dia: 1.181" — must match midshaft stub OD exactly
- Center-to-base: 4.921" — height from shaft centerline to mounting surface
- Mount hole spacing: 11.102" — must match crossmember bracket exactly
- Complete assembly — bearing race, rubber isolator, and bracket as one unit
- Rubber isolator included — absorbs midshaft vibration, reduces NVH to frame
Specifications
- SKU: 2580-11
- Brand: UDS
- Application: AUDI A8/ S8 Series
- Bearing ID: 1.181"
- Center to Base: 4.921"
- Mount Hole Spacing: 11.102"
Additional information
| Application | AUDI A8/ S8 |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 4.921 |
| Ctr to ctr of mount holes | 11.102 |
| Partn number | 2580-11 |
