250-55-31X – 55 – 31X – Splined Sleeves & Slip Assemblies – SPL170 – SPL250 Series – 3.858″ Splines Dia
$191.16
Available on backorder
10
People watching this product now!
Description

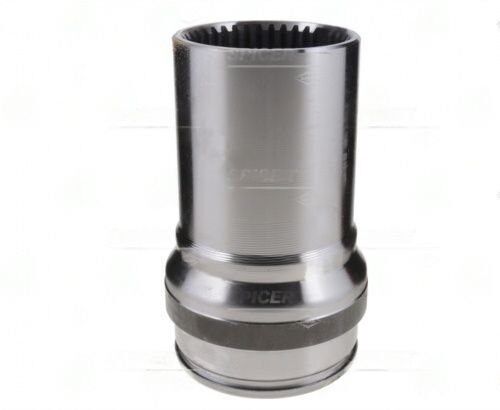

250-55-31X Splined Slip Assembly — SPL170 – SPL250 series | 4.744 butt dia. Proven splined telescoping driveshaft section.
Full Description
The 250-55-31X splined slip assembly is a telescoping splined section that allows the driveshaft to change effective length as the suspension cycles. It operates under both rotational load and axial movement simultaneously — heavier-duty requirements than a simple slip yoke on a transmission tailshaft. The 250-55-31X splined slip assembly is dimensioned for SPL170 - SPL250 series applications with a specific butt diameter for tube fitment.
250-55-31X Splined Slip Assembly — SPL170 - SPL250 Series Specs & Tube Fit
The 250-55-31X splined slip assembly specs: SPL170 - SPL250 series | 4.744 butt dia. Steel construction — standard for high-torque splined assembly applications. The splined interface requires regular lubrication — dry splines under load wear fast and introduce driveline noise before the visible damage appears.
Slip assembly replacement requires matching both the series and the butt diameter. Series determines u-joint compatibility at both ends; butt diameter determines which tube OD this assembly fits. Measure your tube before ordering the 250-55-31X splined slip assembly — don't estimate from the existing part's spec label.
Key Features
- Series: SPL170 - SPL250 — determines u-joint and yoke compatibility
- Butt dia: 4.744 — tube fitment dimension
- Steel construction
- Splined telescoping design — allows driveshaft length change under load
- Lubrication required — keep spline interface greased for longevity
Specifications
- SKU: 250-55-31X
- Brand: UDS
- Material: Steel
- Series: SPL170 - SPL250
- Butt Dia: 4.744
Additional information
| Butt dia | 4.744 |
|---|---|
| End to weld | 6.909 |
| Fits to tube | 4.960×0.118 |
| Material | STEEL |
| Partn number | 250-55-31X |
| Series | SPL170 – SPL250 |
| Splines count | 36/38 |
| Splines dia | 3.858 |
