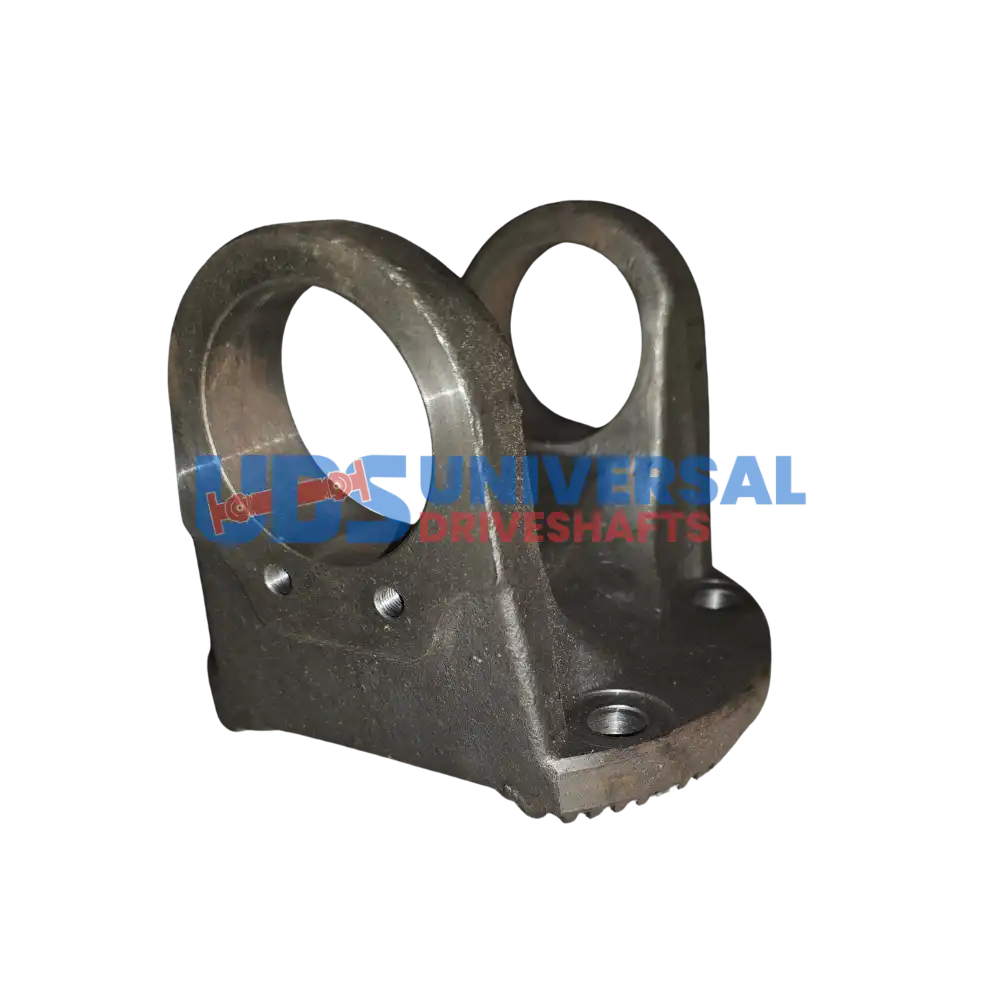

250-2-15 Flange Yoke SPL250 series, Serrated 180xs- Bolt Circle Diameter: 5.906 CL To End: 3.583″
$157.58
3 in stock
20
People watching this product now!
Description
250-2-15 UDS SPL250 series flange yoke, XS180 serrated pilot. 5.906 in bolt circle, 0.551 in holes, 4 bolts, 3.583 in CJ-to-flat. Match bolt circle and serrated pilot before ordering.
Full Description
250-2-15 UDS SPL250 Series Flange Yoke — XS180 Serrated
The 250-2-15 is a UDS SPL250 series flange yoke with a serrated XS 180 pilot and 4-bolt pattern. The bolt circle diameter is 5.906 inches with 0.551-inch bolt holes, and the centerline-to-flat dimension is 3.583 inches. The product notes confirm this is an SPL250 XS180 Serrated configuration, used in heavy-duty commercial driveshaft applications requiring SPL250 series torque capacity.
Specifications
- Part Number: 250-2-15
- Brand: UDS
- Series: SPL250
- Bolt Circle Diameter: 5.906 in
- Bolt Hole Diameter: 0.551 in
- Bolt Holes: 4
- Pilot: XS 180 Serrated
- Center U-Joint to Flat: 3.583 in
- Note: SPL250 XS180 Serrated
When fitting the 250-2-15, verify the companion flange bolt circle is 5.906 inches with 4 holes at 0.551-inch diameter. The XS 180 serrated pilot engages the companion flange face using a serrated interface rather than a smooth cylindrical pilot; confirm the mating flange is also serrated XS 180 to achieve proper centering and torque transfer.
The SPL250 series occupies the heavy-duty end of the SPL spectrum and is used in large commercial trucks and industrial driveshaft applications. The 3.583-inch CJ-to-flat is a relatively long dimension; confirm it is compatible with the driveshaft assembly geometry. SPL250 series U-joints must be used at this yoke's ears. Match bolt circle and pilot spec to your companion flange before ordering.
Additional information
| Bolt circle dia | 5.906 |
|---|---|
| Bolt hole dia | 0.551 |
| Brand | UDS |
| Notes | SPL250 XS180 Serrated |
| Partn number | 250-2-15 |
| Pilot dia | XS 180 |
| Series | SPL250 |
| Bolt Holes | 4 |
| Cj to flat | 3.583 |
