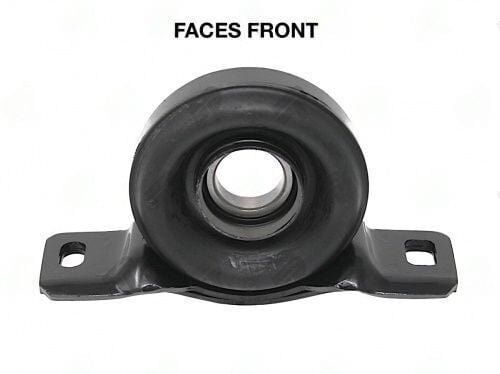

2480-20 – Center Support Bearing – Lexus Application – 1.181″ ID – 1.875″ Center Bearing To Base
$102.09
5 in stock
Description
2480-20 center support bearing, Lexus, 1.181″ bore, 1.875″ center-to-base height, 6.250″ center-to-center mount holes.
Full Description
2480-20 -- Lexus Driveshaft Center Support Bearing
The 2480-20 introduces a raised profile to the Lexus 2480 group: 1.875" center-to-base, compared to the flush-mount 2480-30 and 2480-40. Both the 2480-20 and 2480-30 share the 6.250" mount span, but the height difference (1.875" vs. 0") means they fit entirely different Lexus platforms -- the 2480-20 mounts to a crossmember that is 1.875" below the propshaft centerline, while the 2480-30 sits at shaft centerline height.
This is one of the most common ordering mistakes for Lexus CSBs: selecting by mount span alone when the center-to-base height is the critical differentiator. If the vehicle is a 2480-20 application and the 2480-30 is installed instead, the propshaft droops 1.875" at the center hanger point, creating a sharp reverse-angle kink at both the front and rear U-joints that generates severe vibration above 50 mph. Browse the full center support bearing catalog for Lexus fitments.
Additional information
| Application | Lexus |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.875 |
| Ctr to ctr of mount holes | 6.250 |
| Notes | Lexus SC300 (92-00), SC400 (92-00) |
| Partn number | 2480-20 |
