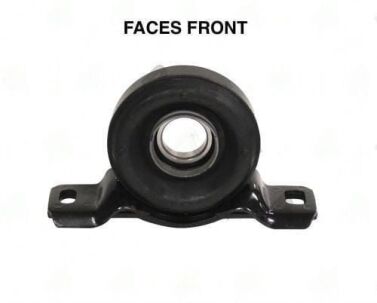

2480-10 – Center Support Bearing – Lexus Application – 1.181″ ID – 2.125″ Center Bearing To Base
$101.47
Out of stock
Description
2480-10 center support bearing, Lexus, 1.181″ bore, 2.125″ center-to-base height, 6.250″ center-to-center mount holes.
Full Description
The 2480-10 is the tallest unit in the Lexus 2480 center support bearing group at 2.125" center-to-base. This height positions the bearing well above the bracket base plate, found on Lexus platforms where the tunnel crossmember is mounted low but the propshaft runs at mid-tunnel height. With the 6.250" mount span shared with 2480-20 and 2480-30, the key differentiator is height: 2.125" (2480-10) vs. 1.875" (2480-20) vs. 0" flush (2480-30).
- Part: 2480-10 | Application: Lexus (verify model/year)
- Bore: 1.181" | Center-to-base: 2.125" | Mount span: 6.250"
- Tallest center-to-base in the 2480-series Lexus fitments
- Sealed bearing, no grease service
Tip: Lexus GS 350/430 and LS 460/600h AWD models have seen center support bearing failures accelerated by worn motor mounts. The powertrain rocking under load transmits shock loads to the driveshaft center section, fatiguing the isolator rubber prematurely. Inspect engine mounts concurrently when replacing the CSB on high-mileage Lexus vehicles.
Additional information
| Application | Lexus |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.125 |
| Ctr to ctr of mount holes | 6.250 |
| Notes | Lexus LS400 (90-94) GS300 (93-97) |
| Partn number | 2480-10 |
