2380-91 TOYOTA Vigo 4WD 2005 Center Bearing CBTVIG 37100-ok011
$25.20
33 in stock
14
People watching this product now!
Description
2380-91 center support bearing for Toyota Vigo 4WD 2005 (OE 37100-0K011). Bearing ID 1.181 in, 5.875 in mount hole spacing. Also fits Toyota Corolla AWD 89-92 rear of 3-piece shaft.
Full Description

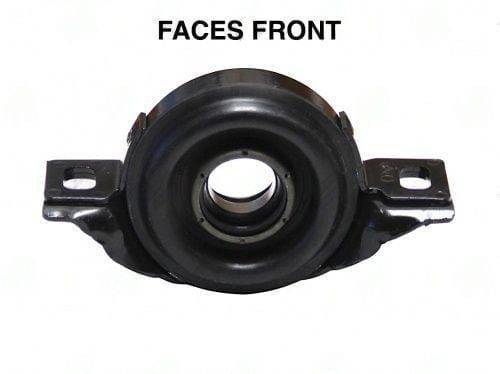

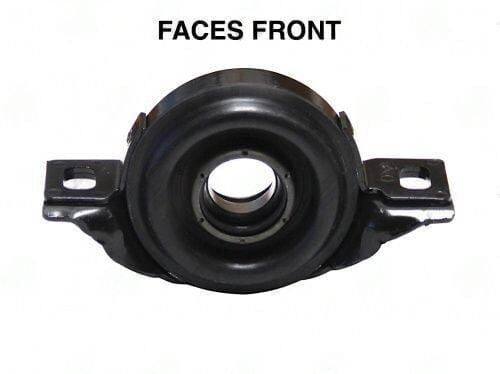

2380-91 Center Support Bearing — Toyota Vigo 4WD 2005 (OE: 37100-0K011)
The 2380-91 is a center support bearing for the Toyota Vigo 4WD, cross-referencing to OE part number 37100-0K011. The bearing ID is 1.181 inches, the center-to-center of mounting holes is 5.875 inches, and the center-bearing-to-base dimension is listed as 0. Per the notes, this bearing also fits the Toyota Corolla AWD (89-92) as the rear bearing on a three-piece shaft, with an asymmetric bracket arrangement: one bracket is 2.32 inches and the opposite side mounts 0.50 inches below at 2.30 inches.
Specifications
- Part Number: 2380-91
- Application: Toyota Vigo 4WD 2005 / Toyota Corolla AWD 1989-1992 (rear of 3-piece shaft)
- OE Reference: 37100-0K011
- Bearing ID: 1.181 in
- Center-to-Center Mount Holes: 5.875 in
- Bracket Offset: 2.32 in one side / 2.30 in opposite (0.50 in below)
When installing the 2380-91, the asymmetric bracket mounting is critical: the bracket mounts are not at equal heights. One side is at 2.32 inches and the opposite side is 0.50 inches lower at 2.30 inches. Reversing the bracket orientation will misalign the midshaft and create vibration. Confirm the bearing ID of 1.181 inches matches the midshaft stub OD before pressing the bearing into the bracket.
The 2380-91 cross-references to OE 37100-0K011 for the Toyota Vigo 4WD 2005. For Toyota Corolla AWD (89-92) installations, this serves as the rearmost bearing in a three-piece shaft arrangement. The 5.875-inch hole spacing must align with the crossmember mounting pattern on the vehicle. Verify bearing ID and mount spacing before installation.
Additional information
| Application | TOYOTA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 5.875 |
| Notes | Toyota Corolla AWD (89-92), Rear on 3pc shaft, CB mounts at an offset . one bracket even( 2.32″ bracket ) and the opposite side mounts .50″ below ( 2.30″ bracket ) |
| Partn number | 2380-91 |
