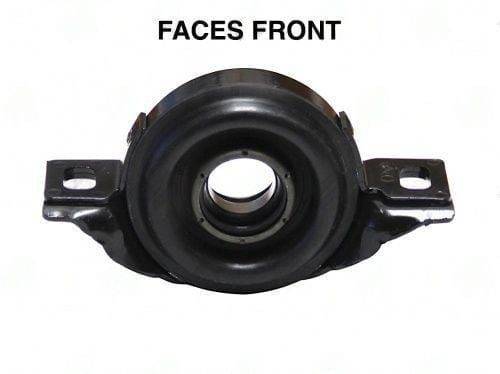

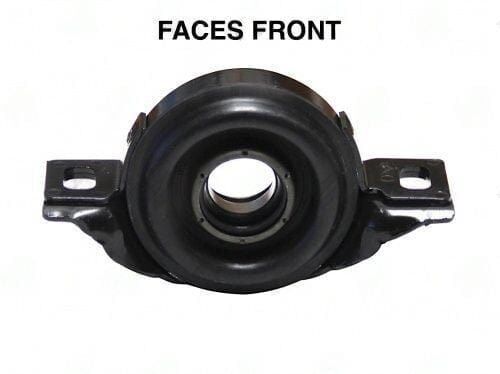

2380-90 – Center Support Bearing – Toyota Application – 1.181″ ID – 5.875″ Ctr To Ctr Of Mount Hole
$115.27
10 in stock
20 People watching this product now!
Description
2380-90 center support bearing. 1.181″ inner dia | 0″ center-to-base | 5.875″ mount hole spacing. App: TOYOTA series. Two-piece driveshaft midshaft support — complete assembly.
Full Description
Two-piece driveshafts need a center support bearing to keep the midshaft running true. The 2380-90 center support bearing is the direct replacement -- correct ID, correct mount spacing.
2380-90 Center Support Bearing -- Fit & Mount Specs
The 2380-90 center support bearing -- 1.181" inner dia | 0" center-to-base | 5.875" mount hole spacing. Toyota Corolla AWD (89-92), Rear on 3pc shaft, CB mounts at an offset . one bracket even( 2.32" bracket ) and the opposite side mounts .50" below ( 2.30" bracket ).
Application: TOYOTA series drivetrains. The rubber isolator absorbs vibration between the rotating shaft and the fixed frame mount. Replace the complete assembly -- not just the bearing race -- for best results.
Key Features
- Application: TOYOTA series -- verify your driveshaft series matches
- Bearing inner dia: 1.181" -- must match midshaft stub OD exactly
- Center-to-base: 0" -- height from shaft centerline to mounting surface
- Mount hole spacing: 5.875" -- must match crossmember bracket hole pattern
- Rubber isolator included -- absorbs vibration, reduces NVH at the midshaft
- Complete assembly -- bearing race, rubber mount, and bracket in one unit
- Note: Toyota Corolla AWD (89-92), Rear on 3pc shaft, CB mounts at an offset . one bracket even( 2.32" bracket ) and the opposite side mounts .50" below ( 2.30" bracket )
Specifications
- SKU: 2380-90
- Brand: UDS
- Application: TOYOTA Series
- Bearing ID: 1.181"
- Center to Base: 0"
- Mount Hole Spacing: 5.875"
- Notes: Toyota Corolla AWD (89-92), Rear on 3pc shaft, CB mounts at an offset . one bracket even( 2.32" bracket ) and the opposite side mounts .50" below ( 2.30" bracket )
Additional information
| Application | TOYOTA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 0 |
| Ctr to ctr of mount holes | 5.875 |
| Notes | Toyota Corolla AWD (89-92), Rear on 3pc shaft, CB mounts at an offset . one bracket even( 2.32" bracket ) and the opposite side mounts .50" below ( 2.30" bracket ) |
| Partn number | 2380-90 |
