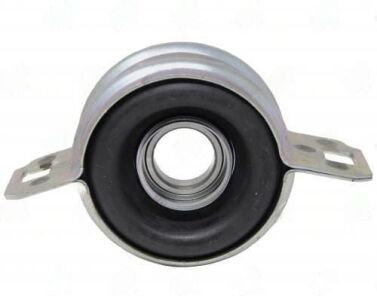

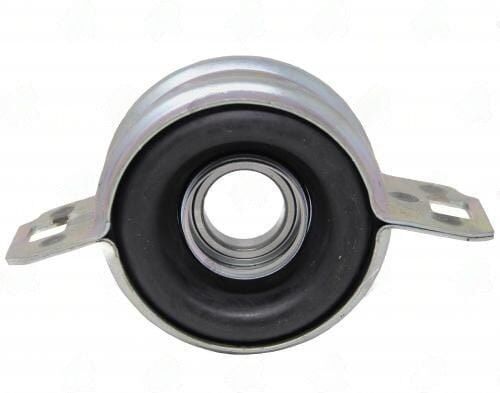

2380-50 – Center Support Bearing – Toyota Application – 1.181″ ID – 5.875″ Ctr To Ctr Of Mount Hole
$78.17
10 in stock
Description
2380-50 center support bearing, Toyota, 1.181″ bore, 0″ center-to-base (flush), 5.875″ center-to-center mount holes.
Full Description
Q: The 2380-50 and 2380-80 both show flush mount and 5.875" span -- are they the same part?
A: The core dimensions match, but separate catalog numbers indicate fitment differences -- likely different bearing ODs, rubber compound specifications, or hardware included. Always order by part number rather than substituting based on matching dimensions alone. If in doubt, contact us with your vehicle year and model.
Q: What causes Toyota CSBs to fail prematurely?
A: Three main causes: rubber isolator fatigue from road salt exposure, inner race fretting from a loose fit on an undersized stub shaft, and bearing contamination from a cracked rubber boot allowing water or dirt ingress. Inspect the stub shaft OD and isolator condition before installing a new unit.
Q: Is this the same as the Spicer equivalent?
A: Check Spicer/Dana catalog for Toyota CSB cross-references. Browse the center support bearing catalog for all Toyota 2380-series fitments.
Additional information
| Application | TOYOTA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 5.875 |
| Notes | Celica (78-81) Corona (78-81) |
| Partn number | 2380-50 |
