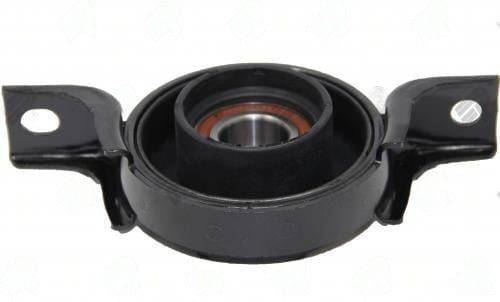

2280-55 – Center Support Bearing – Acura Application – 985″ ID – 1.000″ Center Bearing To Base
$81.61
5 in stock
18 People watching this product now!
Description
2280-55 center bearing — Acura. Bearing ID: 0.985″. Center-to-base: 1.000″. Mount spacing: 6.625″.
Full Description
The 2280-55 is the Acura-application center support bearing with a 1.000" center-to-base height. Acura AWD and SH-AWD vehicles use two-piece or three-piece driveshafts on longitudinal drivetrain configurations, particularly the TL, RL, MDX, and RDX platforms.
The 0.985" inner bore (25mm) is standard for this vehicle class. The 1.000" center-to-base dimension places the bearing centerline 1.000" above the bracket mounting face. This height positions the driveshaft at the correct operating angle for the Acura chassis geometry.
| Specification | Value |
|---|---|
| Part Number | 2280-55 |
| Application | Acura |
| Bearing ID | 0.985" |
| Center-to-Base | 1.000" |
| Mount Hole Spacing | 6.625" |
Compare with 2280-50 (0.347" center-to-base, Acura MDX / Honda Pilot) and 2280-40 (0.750" center-to-base, Acura/Honda) when identifying the correct part for your specific Acura model. The same 6.625" spacing appears across these variants, so the bracket footprint is common, but height variations are critical for correct driveshaft angle.
Additional information
| Application | ACURA |
|---|---|
| Bearing id | 985 |
| Center bearing to base | 1.000 |
| Ctr to ctr of mount holes | 6.625 |
| Partn number | 2280-55 |
