211544X – Cv Link Yokes – 1310 Series – Bolt Hole Dia .312-24 – Notes LONG SOCKET TYPE
$88.06
4 in stock
14 People watching this product now!
Description
211544X CV link yoke, 1310 series. 1310 series | 500 ball stud | .312-24 bolt hole | 1.656″ CU-to-end. Verify ball stud and bolt hole specs before ordering.
Full Description
CV link yokes are specific to constant velocity driveshaft configurations. The 211544X CV link yoke is the 1310 series version -- ball stud and bolt hole dimensions are series-specific.

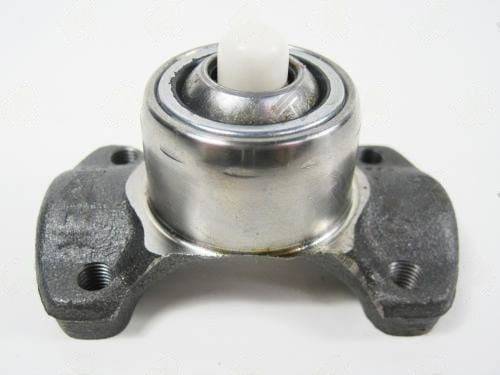

211544X CV Link Yoke -- 1310 Series Specs
1310 series | 500 ball stud | .312-24 bolt hole | 1.656" CU-to-end. LONG SOCKET TYPE. Verify ball stud diameter against your CV head socket before ordering.
Key Features
- Series: 1310 -- CV link application
- Ball stud dia: 500 -- must match CV head socket
- Bolt hole dia: .312-24 -- fastener spec
- CU-to-end: 1.656" -- link yoke length
- Note: LONG SOCKET TYPE
Specifications
- SKU: 211544X
- Brand: UDS
- Series: 1310
- Ball Stud Dia: 500
- Bolt Hole Dia: .312-24
- CU to End: 1.656"
- Notes: LONG SOCKET TYPE
Additional information
| Bolt hole dia | .312-24 |
|---|---|
| Notes | LONG SOCKET TYPE |
| Partn number | 211544X |
| Series | 1310 |
| Ball stud dia | 500 |
| Center u joint to end | 1.656 |
