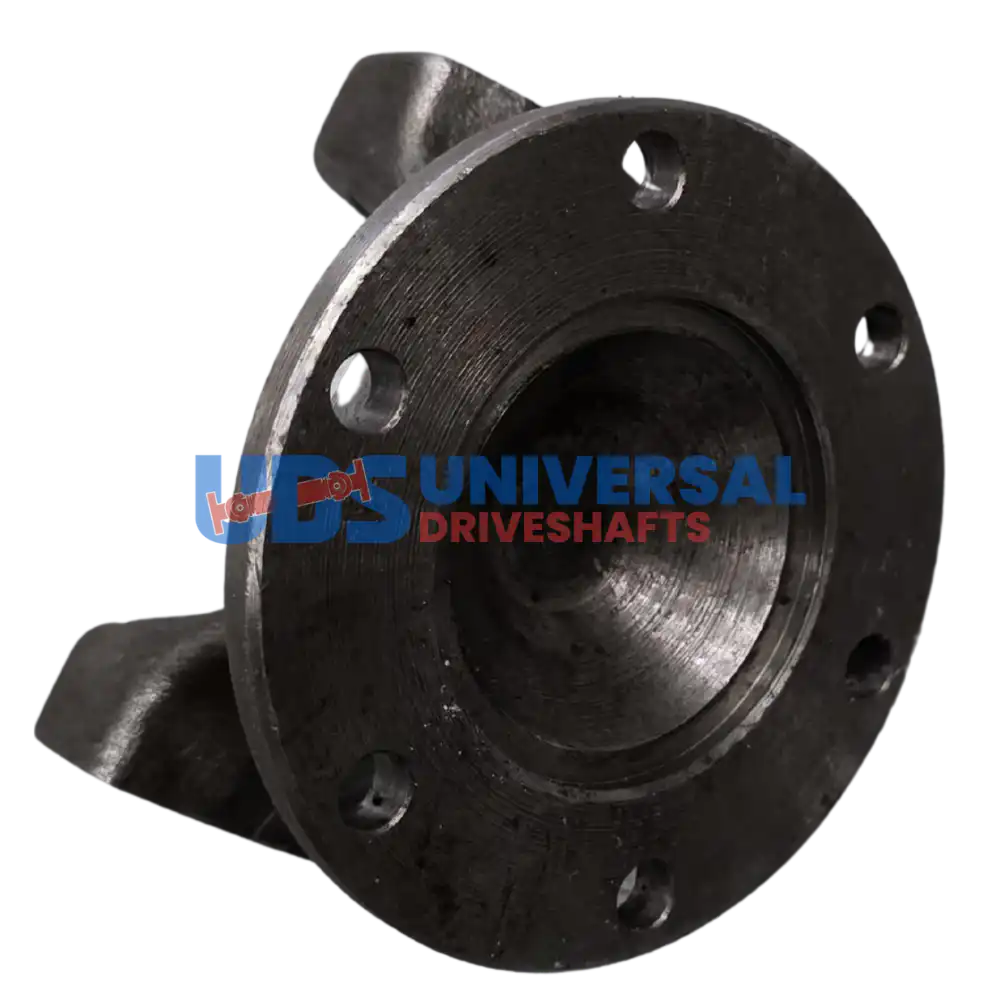

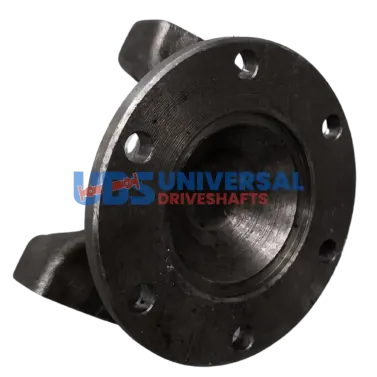

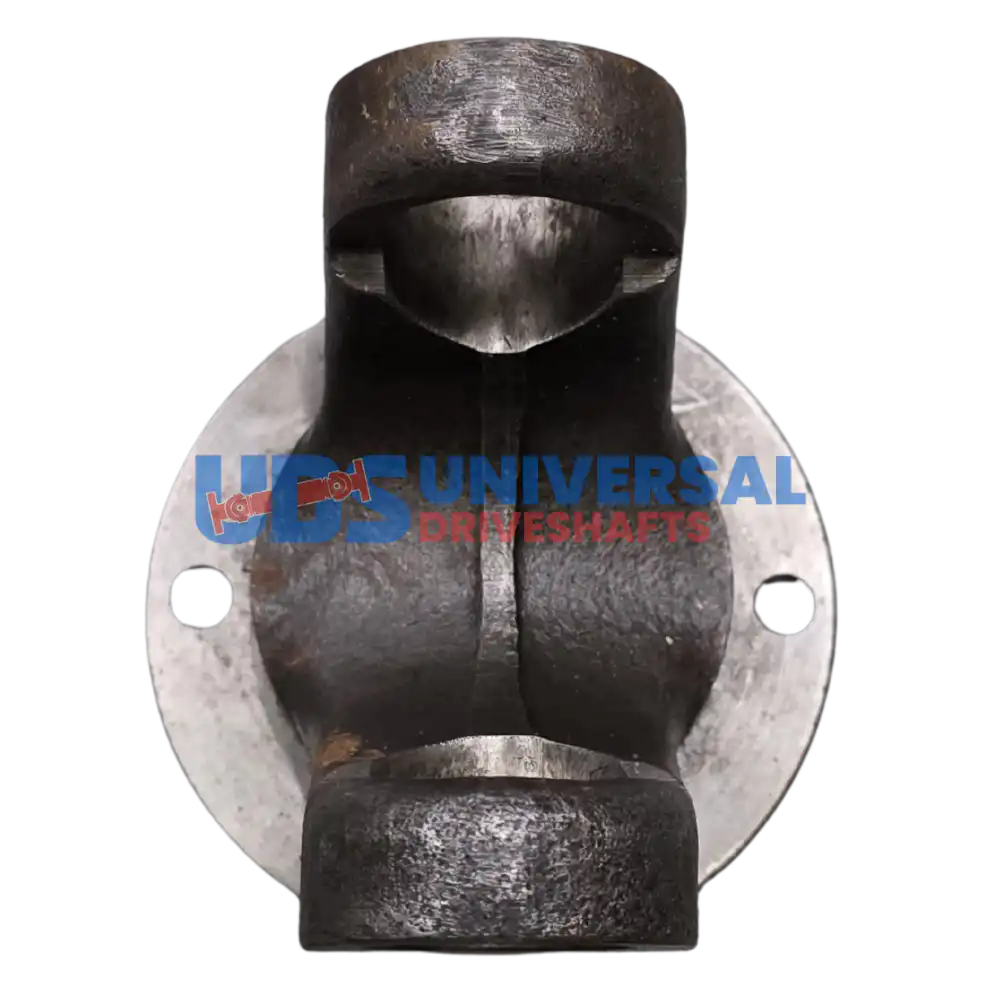

2-2-1339B Flange Yoke 1350 series , 6 x 0.441 Holes on 3.307 Bolt Circle Diameter FY1350-100-6 , 2.244 Female Pilot

The 2-2-1339B Flange Yoke is a robust component from the 1350 Series, designed to connect the driveshaft to the transmission or differential effectively. With a bolt circle diameter of 3.307″ and a pilot diameter of 2.244″, this yoke ensures a secure fit and reliable performance under various load conditions. The 1350 Series is specifically engineered for applications that require higher torque capacities than the 1310 Series but do not necessitate the heavier design of the 1410 Series. This makes the 1350 Series yoke a versatile choice for performance builders and fleet technicians alike.

Installation of the 2-2-1339B requires attention to detail. Ensure proper spline engagement and verify that the yoke is phased correctly with the opposite yoke to prevent vibrations. The yoke features six bolt holes with a diameter of 0.345″, allowing for a solid connection to companion flanges. The centerline distance from the flange face to the flat is 2.625″, providing the necessary clearance for various driveline configurations.

• Series: 1350
• Bolt Circle Diameter: 3.307″
• Pilot Diameter: 2.244-F
• Bolt Hole Diameter: 0.345″
• Centerline Distance: 2.625″

In summary, the 2-2-1339B Flange Yoke is engineered to handle the demands of high-performance applications while maintaining compatibility with a range of driveline components.
