Brand:

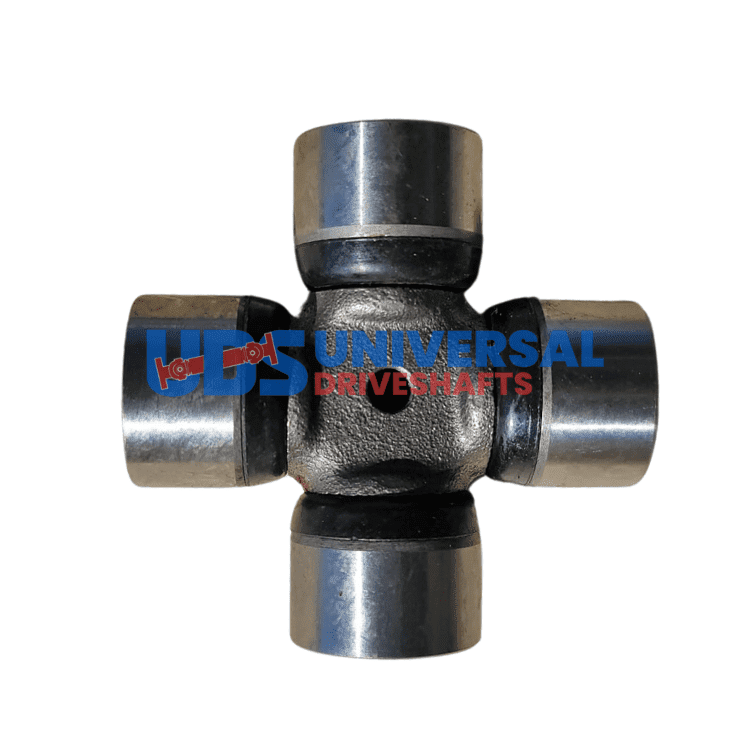

1751-22 UDS UDS 1751-22 Universal Joint – 1751 Series – …
$12.27
+50 in stock
15
People watching this product now!
Description
1751-22 — 1751 series, 0.985″ cap, 2.517″ width. Premium greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The 1751-22 is a 1751 series outside snap ring retention universal joint measuring 0.985" cap dia | 2.517" width. The 1751-22 is greaseable with zerk fitting. Every 1751-22 is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
1751-22 -- 1751 Series Cap & Width Specifications
The 1751-22 specs: 0.985" cap dia | 2.517" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (2.517" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. Suzuki and more.
Verify the yoke bore diameter against the 1751-22 cap size before installing. The snap ring style (outside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The 1751-22 requires a grease gun at installation and at regular service intervals. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for 1751-22
Before installing the 1751-22, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the 1751-22 before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The 1751-22 should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: 1751 series
- Cap dia: 0.985" -- must match yoke bore exactly
- Width: 2.517" -- controls yoke ear span
- Style: outside snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- Brand: UDS
- Note: Suzuki and more
Specifications
- SKU: 1751-22U
- Part Number: 1751-22
- Brand: UDS
- Series: 1751
- Cap Dia 1: 0.985"
- Width 1: 2.517"
- Snap Ring Style: OSR
- Lube: Yes -- grease fitting
- Notes: Suzuki and more
Additional information
| Series |
1751 |
|---|---|
| Style |
OSR |
| Cap dia 1 |
0.985 |
| Width 1 |
2.517 |
| Partn number |
1751-22 |
| Brand |
UDS |
| Lube |
Y |
| Notes |
Suzuki and more |
