1680-35 – Center Support Bearing – Dodge. Jeep Application – 1.181″ ID – 7.500″ Ctr To Ctr Of Mount Hole
$108.78
10 in stock
Description

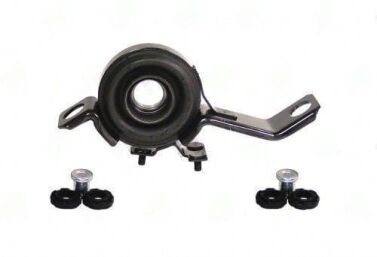

1680-35 center support bearing for Dodge/Jeep — 1.181" ID, 7.500" spread, asymmetric mounts at 1.00" and 4.00" from shaft CL. Grommets included.
Full Description
The 1680-35 has an asymmetric mount layout: the two bolt holes sit at 1.00" and 4.00" offsets from the bearing CL -- not equidistant. This is the specification for Dodge and Jeep applications using a non-centered crossmember bracket. Swapping to a symmetric carrier here requires crossmember modification because the hole pattern will not align.
- Bearing ID: 1.181"
- Ctr-to-ctr mount holes: 7.500"
- Mount offsets: 1.00" and 4.00" from bearing CL (asymmetric layout)
- Center-to-base: 0 (flush)
- Grommets included -- replace them; hardened OEM grommets eliminate isolation benefit
Tip: When grommets are included in a center support bearing kit, always install the new grommets. Hardened originals no longer isolate vibration regardless of how new the bearing is.
Additional information
| Application | Dodge. Jeep |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 7.500 |
| Notes | CL to base mounting points offset 1.00″ and 4.00″ . Grommets included |
| Partn number | 1680-35 |
