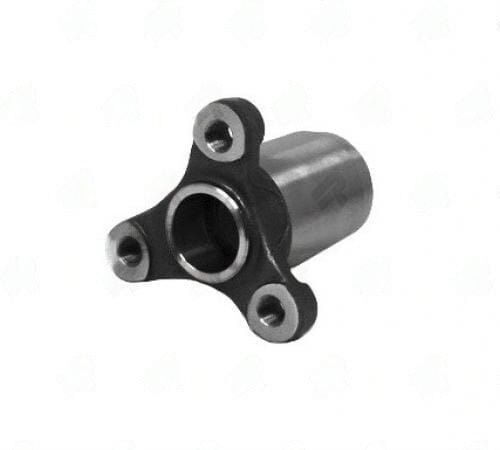

1626-781 – Tri & Quad Prongs – Bolt Circle Dia 78MM – Butt Dia 1.844″ – Tube Dia Wall 2.000×0.065
$73.74
3 in stock
20
People watching this product now!
Description
1626-781 prong flange — 78MM bolt circle | THRD12x.125 bolt holes | 1.844″ butt dia | fits 2.000×0.065 tube. Weld-on metric driveshaft connection. KIA SPORTAGE , TUCSON.
Full Description
Prong connectors on European driveshafts take the place of yokes -- they weld to the tube and bolt to the differential flange. The 1626-781 is dimensioned for this application.
1626-781 Prong Flange Specifications
1626-781 prong connector -- 78MM bolt circle | THRD12x.125 bolt holes | 1.844" butt dia | fits 2.000x0.065 tube. KIA SPORTAGE , TUCSON.
Bolt pattern verification is critical on metric platforms -- European diff flanges don't use the same bolt circles as domestic trucks. Measure yours before ordering.
Key Features
- Bolt circle: 78MM -- metric, must match diff flange exactly
- Bolt hole dia: THRD12x.125 -- metric hole dimension
- Butt dia: 1.844" -- slides over driveshaft tube OD for weld
- Tube compatibility: 2.000x0.065 -- designed for this tube specification
- Note: KIA SPORTAGE , TUCSON
Specifications
- SKU: 1626-781
- Brand: UDS
- Bolt Circle: 78MM
- Bolt Hole Dia: THRD12x.125
- Butt Dia: 1.844"
- Tube Fit: 2.000x0.065
- Notes: KIA SPORTAGE , TUCSON
Additional information
| Bolt circle dia |
78MM |
|---|---|
| Bolt hole dia |
THRD12x.125 |
| Butt dia |
1.844 |
| Notes |
KIA SPORTAGE , TUCSON |
| Partn number |
1626-781 |
| Tube dia wall |
2.000×0.065 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tri & Quad Prongs (39) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Partn number 1626-780 Bolt circle dia 78MM Bolt hole dia 12MM Tube dia wall 2.000x0.065 Butt dia 1.844 Notes HYNDAI SANTA FE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 105MM Bolt hole dia 12MM Butt dia 2.344 Face to weld 1.625" Nose bushing dia 32MM Notes LEXUS LS400 Partn number 2426-105 Tube dia wall 2.500X0.083 Bolt hole pilot dia 18.5 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 105MM Bolt hole dia 12MM Butt dia 2.344 Face to weld 1.000" Nose bushing dia 32MM Notes LEXUS Partn number 2426-106 Tube dia wall 2.500X0.083 Bolt hole pilot dia 22.5mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 105MM Bolt hole dia THRD 10x1.50 Butt dia 2.344 Face to weld 1.500" Nose bushing dia 31MM Partn number 2526-105 Tube dia wall 2.500X0.083 Bolt hole pilot dia 18mm MALE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 96MM Bolt hole dia THRD 10x1.50 Butt dia 2.344 Face to weld 1.500" Nose bushing dia 31 Partn number 2526-960 Tube dia wall 2.500X0.083 Bolt hole pilot dia 22 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 78MM Bolt hole dia 12MM Butt dia 1.844 Face to weld 1.125" Nose bushing dia 28MM Notes BMW Partn number 2726-202 Tube dia wall 2.000X0.083 Bolt hole pilot dia N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 78MM Bolt hole dia 10MM Butt dia 1.844 Face to weld 1.125" Nose bushing dia 28MM Notes BMW Partn number 2726-203 Tube dia wall 2.000X0.083 Bolt hole pilot dia N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 96MM Bolt hole dia 12MM Butt dia 2.344 Face to weld 1.125" Nose bushing dia 16MM Notes MALE PIN STYLE Partn number 2726-250 Tube dia wall 2.500X0.083 Bolt hole pilot dia N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 96MM Bolt hole dia 12MM Butt dia 2.375 Face to weld 1.125" Nose bushing dia 28MM Notes BMW Partn number 2726-251 Tube dia wall 2.500X0.065 Bolt hole pilot dia N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 105MM Bolt hole dia 14MM Butt dia 2.344 Face to weld 1.250" Nose bushing dia 28MM Notes BMW Partn number 2726-252 Tube dia wall 2.500X0.083 Bolt hole pilot dia N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
