1480-15 Carrier Bearing Land Rover Freelander 1996-2006
$46.50
33 in stock
10 People watching this product now!
Description

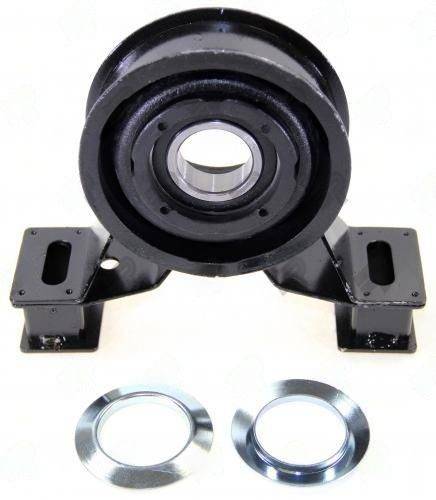

1480-15 center support bearing. 1.181″ inner dia | 3.500″ center-to-base | 5.500″ mount hole spacing. App: Landrover series. Two-piece driveshaft midshaft support — complete assembly.
Full Description
A sagging center support bearing changes every angle in a two-piece driveshaft. The 1480-15 center support bearing restores the correct geometry at the midshaft.
1480-15 Center Support Bearing -- Landrover Series Dimensions
Specs on the 1480-15 center support bearing: 1.181" inner dia | 3.500" center-to-base | 5.500" mount hole spacing. 02-05 Freelander w/ 1.125" spacers.. Built for Landrover series applications. The inner diameter must match your midshaft stub -- too loose and the bearing walks; too tight and it won't press on.
Mount hole center-to-center spacing is the most overlooked spec on CSBs. If the holes don't match your crossmember bracket, the bearing will be offset and the shaft will run off-center.
Key Features
- Application: Landrover series -- verify your driveshaft series matches
- Bearing inner dia: 1.181" -- must match midshaft stub OD exactly
- Center-to-base: 3.500" -- height from shaft centerline to mounting surface
- Mount hole spacing: 5.500" -- must match crossmember bracket hole pattern
- Rubber isolator included -- absorbs vibration, reduces NVH at the midshaft
- Complete assembly -- bearing race, rubber mount, and bracket in one unit
- Note: 02-05 Freelander w/ 1.125" spacers.
Specifications
- SKU: 1480-15
- Brand: UDS
- Application: Landrover Series
- Bearing ID: 1.181"
- Center to Base: 3.500"
- Mount Hole Spacing: 5.500"
- Notes: 02-05 Freelander w/ 1.125" spacers.
Additional information
| Application | Landrover |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 3.500 |
| Ctr to ctr of mount holes | 5.500 |
| Notes | 02-05 Freelander w/ 1.125" spacers. |
| Partn number | 1480-15 |
