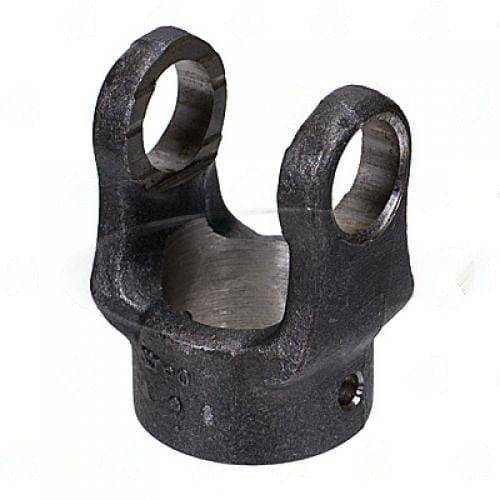

10-1532 – End Yoke – 1000 Series – 1.500″ Bore Dia – 2.00″ Hub Dia

The 10-1532 PTO end yoke connects a keyed PTO shaft to the u-joint at the drive end of the assembly. For 1000 series applications, the bore diameter and keyway width are the two specs that determine whether this part fits your PTO shaft correctly. The 10-1532 PTO end yoke won't work on a different bore or a different keyway — both dimensions are spec-specific.

10-1532 Pto End Yoke — 1000 Series Bore & Keyway Specs

The 1000 series covers PTO applications — agricultural equipment, industrial shafts, tractor drive. The 10-1532 PTO end yoke specs: 1.26 bore | 0" keyway | 2.00" hub dia | 2.50" CJ-to-end. Keyway width is critical — a loose keyway shears the key under load and wallows out the shaft. Bore diameter must match the PTO shaft OD without play. Hub diameter and CJ-to-end position the u-joint cross relative to the shaft end.

Measure the PTO shaft OD and keyway width directly before ordering the 10-1532 PTO end yoke. Don't go by the manufacturer's nominal spec — worn shafts are often slightly undersized, and manufacturing variations exist across production years. Confirm both numbers on the actual shaft.

Key Features

• Series: 1000 — PTO applications — agricultural equipment, industrial shafts, tractor drive
• Bore: 1.26 — must match PTO shaft OD exactly
• Keyway: 0" — must match shaft keyway width
• Hub dia: 2.00"
• CJ-to-end: 2.50" — positions u-joint on PTO shaft
• Bore type: Round

Specifications

• SKU: 10-1532
• Brand: UDS
• Series: 1000
• Bore Type: Round
• Through Hole: 1.26
• Bore Dia: 1.500
• Keyway: 0"
• Hub Dia: 2.00"
• CJ to End: 2.50"
