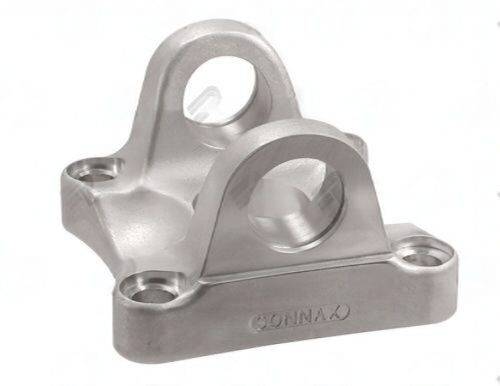

T2-2-489A – Flange Yokes – 1330 Series – Bolt Circle Dia 3.750″ – Pilot Dia 2.750, M

Selecting the Right Flange Yoke -- T2-2-489A for 1330 Series

Flange yoke selection starts with two numbers: bolt circle diameter and pilot diameter. Get either wrong and the part will not fit. The T2-2-489A targets companion flanges with a 3.750" bolt circle and a 2.750" male (raised) pilot, which covers a significant slice of North American and import truck platforms running 1330 series driveshafts. If your vehicle fits this profile, the T2-2-489A is a direct bolt-on with no modification needed.

Full Specification Table

Understanding 1330 Series Compatibility

The 1330 series designation refers to the u-joint cross cap diameter and load rating. Mixing series at the flange creates a weak link that will fail under the torque the upstream components can generate. The T2-2-489A is a native 1330 series design, meaning the ear bore matches 1330 cross dimensions and the strength grade is appropriate for the rated output of 1330 series u-joints. Do not attempt to adapt a lower-series yoke onto a 1330 series driveshaft -- the ear bore will be too small or the material grade too soft.

Key Fit Points to Verify Before Ordering

• Bolt circle on companion flange: 3.750" (measure, do not estimate)
• Number of bolt holes: 4
• Bolt hole diameter: 0.438"
• Pilot diameter: 2.750" male (raised) pilot
• CJ-to-flat dimension: 1.562"

Universal Driveshafts ships the T2-2-489A in protective packaging to prevent surface damage to the machined pilot and flange face in transit. Inspect on arrival and contact our team immediately if any dimensional concern is identified before installation.
