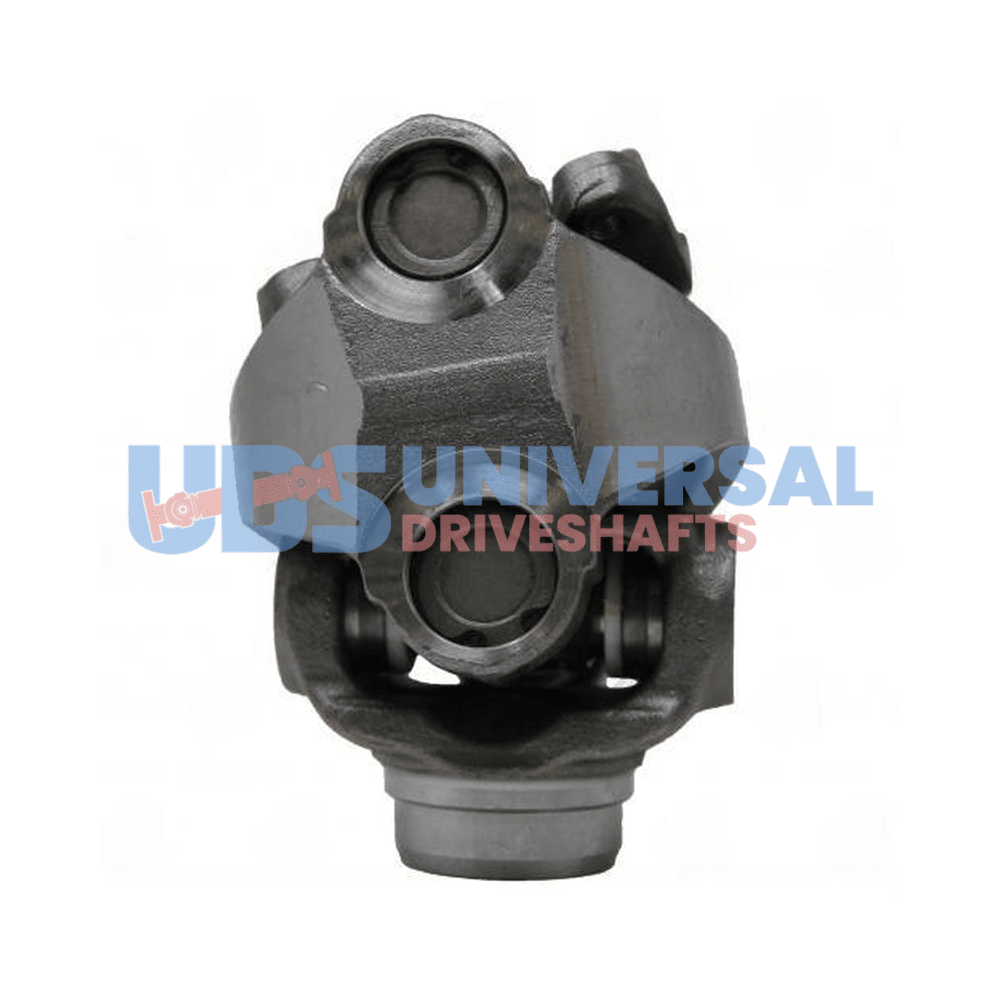

The N912777 is a half-round CV head from the 1310 series, classified as light-duty (LD). It features a tube diameter of 2.000 inches and a tube wall thickness of 0.120 inches. The butt diameter measures 1.766 inches, with a pilot diameter of 0 inches. This part has no defined bolt circle diameter, and the bolt hole diameter is 0.31-24. The end-to-weld length is 4.120 inches, and it is designed for a joint angle of 26 degrees. This CV head requires lubrication.
$197.26
| Weight | 10 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 0 |
| Bolt Hole Dia | 0.31-24 |
| BUTT DIA | 1.766 |
| END TO WELD | 4.125 |
| Partn number | N912777 |
| Pilot dia | 0 |
| remaining stock | <10 |
| STYLE & SERIES | 1310 HR |
| Tube DIA & Wall | 2.000X0.120 |
