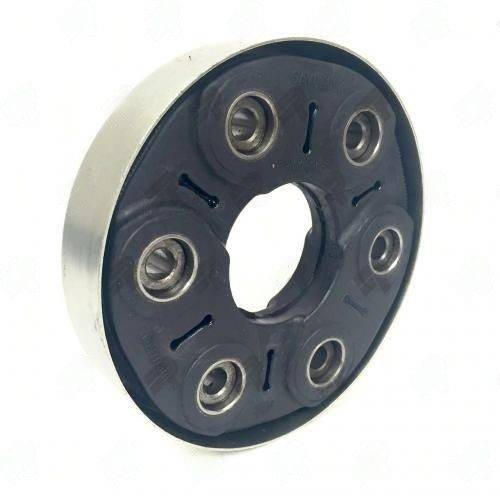

GAV01-007-Z – Rubber Flex Disc – Vw Application – Bolt Circle Dia 105MM – Disc Width 30MM

GAV01-007-Z is a rubber flex disc specifically designed for Volkswagen vehicles. This component plays a crucial role in absorbing torsional vibrations between the transmission output and the driveshaft input, enhancing the overall driving experience. If you notice symptoms like clunking on takeoff or vibrations at low speeds, it may indicate that your existing flex disc is worn or cracked. This can lead to increased NVH (noise, vibration, harshness) in the cabin, which is not only uncomfortable but can also signal further driveline issues.

With a bolt circle diameter of 105MM and six 10MM bolt holes, the GAV01-007-Z ensures a secure and precise fit. The inverted pilot diameter of 18MM aids in alignment, while the 30MM disc width is tailored for light-duty applications. The inclusion of a steel shield adds durability, making this flex disc a reliable choice for maintaining driveline integrity.

• Application: VW
• Bolt Circle Diameter: 105MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 10MM
• Disc Width: 30MM

When installing, always check the bolt orientation and ensure proper alignment with the marks provided. Torque the bolts to specification in a star pattern to avoid uneven stress. Regular inspections for cracks or deformation at the reinforcement sleeves can prevent premature failure and keep your vehicle running smoothly.
