2755-583

$149.79

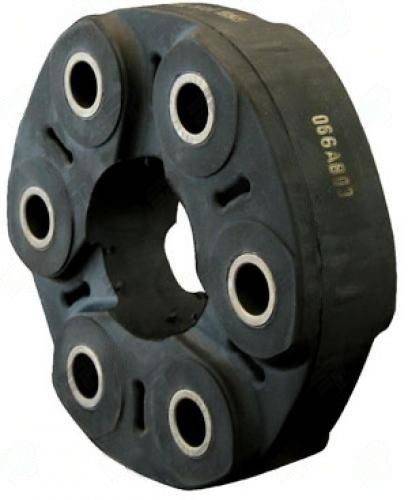

The 2755-583 for BMW features a bolt circle diameter of 105mm, with six bolt holes that have a diameter of 14mm. The disc width is 38mm, and it is categorized as a light-duty (LD) component. Manufactured by PTI, this part is designed for BMW vehicles, ensuring reliability and performance.

2755-583

$149.79

Additional information

Weight 5 lbs
Dimensions 25 × 18 × 10 in
APPLICATION

BMW
Bolt Circle Dia

105MM
Bolt Hole Count

6
Bolt Hole Dia

14MM
Disc Width

38MM
Partn number

2755-583
Pilot dia

N/A
remaining stock

<10

Available on backorder

Related products

Two Piece Driveshaft: Flange

Two Piece Driveshaft Measuring Flange to End Yoke

IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A) :
Measure from the transmission output flange face to the center of the carrier bearing bolt holes.

Measurement (B) :
Measure from the center of carrier bearing bolt holes to the flats (center of u-joint or flats) on the end yoke at the differential.

Two Piece Driveshaft Measuring Flange To Flange

IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A):
Measure from the transmission output flange face to the center of the carrier bearing bolt holes.

Measurement (B) :
Measure from the center of carrier bearing bolt holes to the face of the flange on the differential.

Two Piece Driveshaft: Rubber Boot Extension

Two Piece Driveshaft Measuring Rubber Boot Extension to End Yoke

IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A) :
Measure from end of rubber boot extension on the transmission to the center of the carrier bearing bolt holes.

Measurement (B) :
Measure from the center of carrier bearing bolt holes to the end yoke flats (center of u-joint or flats) on the differential.

Measurement (C) :
Measure from the end of the rubber boot extension to end the of the transmission output/spline. If spline is recessed in rubber boot Extension, enter ø.

Two Piece Driveshaft Measuring Rubber Boot Extension to Flange

IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A) :
Measure from end of rubber boot extension on the transmission to the center of the carrier bearing bolt holes.

Measurement (B) :
Measure from the center of carrier bearing bolt holes to the flange face on the differential.

Measurement (C) :
Measure from the end of the rubber boot extension to end the of the transmission output/spline. If spline is recessed in rubber boot Extension, enter ø.

Two Piece Driveshaft: End Yoke

Two Piece Driveshaft Measuring End Yoke To End Yoke

IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A):
from the transmission output end yoke (center of u-joint or flats) to the center of the carrier bearing bolt holes.

Measurement (B):
Measure from the center of carrier bearing bolt holes to the end yoke (center of u-joint or flats) on the differential.

Two Piece Driveshaft Measuring End Yoke To Flange

IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A) :
Measure from the transmission output end yoke (center of u-joint or flats) to the center of the carrier bearing bolt holes.

Measurement (B) :
Measure from the center of carrier bearing bolt holes to the face of the flange on the differential.

Two Piece Driveshaft: Seal

Seal to End Yoke

 IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A) – Front Driveshaft Length:
Measure from end of rubber seal on the transmission to the center of the carrier bearing bolt holes.

Measurement (B) – Rear Driveshaft Length:
Measure from the center of carrier bearing bolt holes to the end yoke flats (center of ujoint) on the differential.

Spline Extrusion Length

Measurement (C) – Spline Extrusion Length:
Measure from rubber seal to end the of the transmission output/spline. If spline is recessed in rubber seal, enter ø.

Seal to Flange

 IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes.  Many carrier mounts are slotted for adjustment.

DriveShaft Length

Measurement (A) – Front Driveshaft Length:
Measure from end of rubber seal on the transmission to the center of the carrier bearing bolt holes.

Measurement (B) – Rear Driveshaft Length:
Measure from the center of carrier bearing bolt holes to the end yoke flats (center of ujoint) on the differential.

Spline Extrusion Length

Measurement (C) – Spline Extrusion Length:
Measure from rubber seal to end the of the transmission output/spline. If spline is recessed in rubber seal, enter ø.

Inside Snap Ring Style Transmission Slip Yoke

E.) Cap Diameter:
Diameter measured over bearing cap space.

F.) Width:
Distance Measured Between Machined Flats

Common Inside Snap Ring U-joint Sizes and series

Series Width Cap Diameter
7260 CHRYSLER
2 1/8″ = 2.125
1 5/64″ = 1.078
7290 CHRYSLER
2 5/8″ = 2.625
1 1/8″ = 1.125
3R GM
2 9/16″ = 2.563
1 1/8″ = 1.125
Inside Snap Ring Style Transmission Slip Yoke form

Outside Snap Ring Style Transmission Slip Yoke

E.) Cap Diameter:
Diameter measured over bearing cap space.

F.) Width:
Distance measured over compressed bearing cap.

Common Outside Snap Ring U-joint Sizes and series

Series Width Cap Diameter
1210
2 7/16″ = 2.438
1 1/16″ = 1.063
1310
3 7/32″ = 3.219
1 1/16″ = 1.063
1310 FORD*
3 7/32″ = 3.219
1 1/8″ = 1.125
1330
3 5/8″ = 3.625
1 1/16″ = 1.063
1330 FORD*
3 5/8″ = 3.625
1 1/8″ = 1.125
1350
3 5/8″ = 3.625
1 1/16″ = 1.063
1410
4 3/16 = 4.188
1 3/16″ = 1.188
1415**
4.178
1 3/16″ = 1.188
1480
4 3/16 = 4.188
1 3/8″ = 1.375
1485**
4.178
1 3/8″ = 1.375
1550
4 31/32″ = 4.969
1 3/8″ = 1.375
1555**
4.9464
1 3/8″ = 1.375
outside Snap Ring Style Transmission Slip Yoke form

Inside Snap Ring Style End Yoke

Width: measure from the inside flat of one yoke ear to the inside flat of the other ear

Cap Diameter: measure the width of the opening where the cap sits in the yoke

Common Inside Snap Ring U-Joint Sizes and series

Series Width Cap Diameter
7260 CHRYSLER
2 1/8″ = 2.125
1 5/64″ = 1.078
7290 CHRYSLER
2 5/8″ = 2.625
1 1/8″ = 1.125
3R GM
2 9/16″ = 2.563
1 1/8″ = 1.125
Inside Snap Ring Style End Yoke

Outside Snap Ring Style End Yoke

Width: measure from inside of tab to inside of tab. If you do not see a tab as shown, then you have an inside snap ring U-Joint.

Cap Diameter: measure the width of the opening where the cap sits in the yoke

Common Outside Snap Ring U-Joint Sizes and series

Series Width Cap Diameter
1210
2 7/16″ = 2.438
1 1/16″ = 1.063
1310
3 7/32″ = 3.219
1 1/16″ = 1.063
1310 FORD*
3 7/32″ = 3.219
1 1/8″ = 1.125
1330
3 5/8″ = 3.625
1 1/16″ = 1.063
1330 FORD*
3 5/8″ = 3.625
1 1/8″ = 1.125
1350
3 5/8″ = 3.625
1 1/16″ = 1.063
1410
4 3/16 = 4.188
1 3/16″ = 1.188
1415**
4.178
1 3/16″ = 1.188
1480
4 3/16 = 4.188
1 3/8″ = 1.375
1485**
4.178
1 3/8″ = 1.375
1550
4 31/32″ = 4.969
1 3/8″ = 1.375
1555**
4.9464
1 3/8″ = 1.375
outside Snap Ring Style End Yoke

INSIDE SNAP RING STYLE U-JOINT

Width:
U Joint: Please measure the distance to the outer edge of the snap ring grooves.

End Yoke: Please measure from the inside flat of one yoke ear to the inside flat of the other ear

Use the picture above for reference

Cap Diameter:
U Joint: Simply measure the U-Joint cap.

End Yoke: Please measure the width of the opening where the cap sits in the yoke.

Use the picture above for reference

Common Inside Snap Ring U-joint Sizes and Series

Series Width Cap Diameter
7260 CHRYSLER
2 – 1⁄8 (2.125)
1 – 5⁄64 (1.078)
7290 CHRYSLER
2 – 5⁄8 (2.625)
1 – 1⁄8 (1.125)
3R GM
2 – 9⁄16 (2.563)
1 – 1⁄8 (1.125)
2R GM
2.342
1.00

OUTSIDE SNAP RING STYLE U-JOINT

Width:
U joint: Please compress the caps and measure from outside of cap to outside of cap .
End Yoke: Please measure from inside of tab to inside of tab, using the picture above for reference, If you do not see a tab as shown, then you have an inside snap ring u joint.
Use the picture above for reference

Cap Diameter:
U joint: Simply measure the U-Joint cap diameter .
End Yoke: Please measure the width of the opening where the cap sits in the yoke. use the picture above for reference
Use the picture above for reference

Common Outside Snap Ring U-joint Sizes and Series

Series Width Cap Diameter
1210
2 7/16″ = 2.438
1 1/16″ = 1.063
1310
3 7/32″ = 3.219
1 1/16″ = 1.063
1310 FORD*
3 7/32″ = 3.219
1 1/8″ = 1.125
1330
3 5/8″ = 3.625
1 1/16″ = 1.063
1330 FORD*
3 5/8″ = 3.625
1 1/8″ = 1.125
1350
3 5/8″ = 3.625
1 3/16″ = 1.188
1410
4 3/16 = 4.188
1 3/16″ = 1.188
1415**
4.178
1 3/16″ = 1.188
1480
4 3/16 = 4.188
1 3/8″ = 1.375
1485**
4.178
1 3/8″ = 1.375
1550
4 31/32″ = 4.969
1 3/8″ = 1.375
1555**
4.9464
1 3/8″ = 1.375
