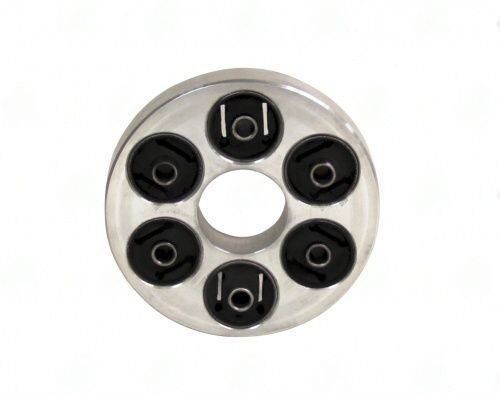

2355-10 – Rubber Flex Disc – Toyota Application – Bolt Circle Dia 80.5MM – Bolt Hole Dia 8MM”,
$84.86
2 in stock
16 People watching this product now!
Description
2355-10 Rubber Flex Disc for TOYOTA — 80.5MM bolt circle | 6 holes | 8MM dia. Complete rubber coupling. Match bolt circle to both flanges.
Full Description
The 2355-10 rubber flex disc is the rubber driveshaft coupling used on TOYOTA European and import vehicles in place of a u-joint. It flexes to absorb angular movement and vibration between the transmission output flange and the driveshaft — without the velocity variation that a standard u-joint produces at high operating angles. A cracked or hardened 2355-10 rubber flex disc causes driveline clunk and vibration that looks like a u-joint problem but requires a completely different fix.
2355-10 Rubber Flex Disc — TOYOTA Bolt Pattern & Dimensions
The 2355-10 rubber flex disc specs: 80.5MM bolt circle | 6 holes | 8MM dia. " Aluminum disc with rubber insert for Toyota Previa accessory driveshaft". Bolt circle diameter is the critical measurement — it has to match both the transmission output flange and the driveshaft input flange simultaneously. Disc width determines the angular flex range. Under-rated rubber fatigues fast; over-rated rubber transmits vibration instead of absorbing it.
Flex disc replacement is straightforward: six bolts out, new 2355-10 rubber flex disc in, torque to spec. The one mistake to avoid is reusing rubber that feels firm but shows fine surface cracking — hardened rubber can't flex properly and the vibration it was supposed to absorb gets passed directly to the chassis.
Key Features
- Application: TOYOTA
- Bolt circle: 80.5MM — must match both flanges exactly
- Bolt holes: 6 — confirm hole count matches your flange
- Bolt hole dia: 8MM
- Rubber coupling — absorbs vibration and angular movement without u-joint velocity variation
- Direct swap — no modification required
- Note: " Aluminum disc with rubber insert for Toyota Previa accessory driveshaft"
Specifications
- SKU: 2355-10
- Brand: UDS
- Application: TOYOTA
- Bolt Circle: 80.5MM
- Bolt Holes: 6
- Bolt Hole Dia: 8MM
- Notes: " Aluminum disc with rubber insert for Toyota Previa accessory driveshaft"
Additional information
| Partn number | 2355-10 |
|---|---|
| Application | TOYOTA |
| Bolt circle dia | 80.5MM |
| Bolt hole count | 6 |
| Bolt hole dia | 8MM |
| Pilot dia | 12MM |
| Notes | ” Aluminum disc with rubber insert for Toyota Previa accessory driveshaft” |
