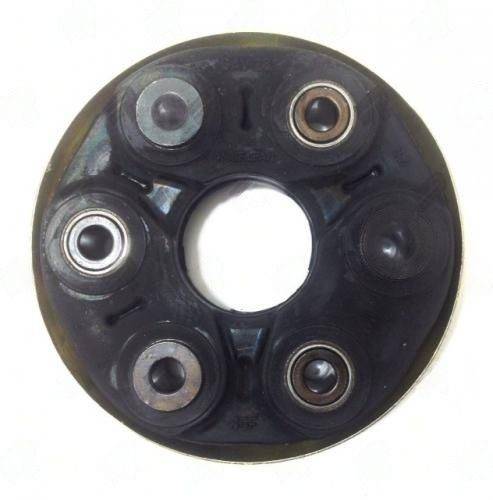

GAV-28 – Rubber Flex Disc – Vw Application – Bolt Circle Dia 96MM – Disc Width 34MM

GAV-28 is a rubber flex disc specifically designed for Volkswagen vehicles, playing a crucial role in dampening torsional vibrations between the transmission output and driveshaft input. This flex disc compensates for minor angular misalignments, eliminating the need for a universal joint in many applications. By reducing noise, vibration, and harshness (NVH), it significantly enhances the driving experience.

With a bolt circle diameter of 96MM and six bolt holes, each measuring 10MM, the GAV-28 ensures a secure fit during installation. The pilot diameter of 22MM aids in precise alignment, while the disc width of 34MM contributes to its durability under light-duty conditions. Failure symptoms such as clunking on takeoff or vibrations at low speeds can indicate a need for replacement, making regular inspections essential.

• Application: VW
• Bolt Circle Diameter: 96MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 10MM
• Disc Width: 34MM
• Pilot Diameter: 22MM

When installing the GAV-28, be sure to check the bolt orientation and follow the torque specifications in a star pattern. Inspect for any visible cracks or deformation, especially around the reinforcement sleeves, to ensure optimal performance. This flex disc is a vital component in maintaining the integrity of your VW's driveline.
