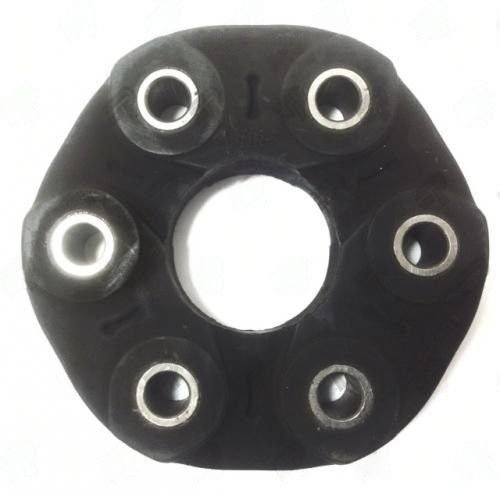

GAR02-001 – Rubber Flex Disc – Rolls Royce Application – Bolt Circle Dia 96MM – Disc Width 30MM

GAR02-001 is a crucial component for Rolls Royce vehicles, specifically designed to absorb torsional vibrations between the transmission output and driveshaft input. This flex disc features a bolt circle diameter of 96MM, a disc width of 30MM, and six bolt holes measuring 12MM each. Its unique configuration allows it to compensate for minor angular misalignments without the need for a universal joint, enhancing driveline performance.

When installed correctly, the GAR02-001 reduces noise, vibration, and harshness (NVH) in the cabin, providing a smoother driving experience. If you notice symptoms like clunking on takeoff or vibrations at low speeds, it may indicate that the flex disc is failing. Regular inspections for visible cracks or deformation are essential to maintain optimal performance.

• Application: Rolls Royce
• Bolt Circle Diameter: 96MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 12MM
• Disc Width: 30MM

Installation requires attention to detail. Make sure to check the bolt orientation and alignment arrows, and torque the bolts to specification in a star pattern. Inspect for cracks at the reinforcement sleeves to ensure longevity. Choosing the GAR02-001 over a similar part is vital, as using an incorrect flex disc can lead to misalignment issues and increased wear on driveline components. Trust in the GAR02-001 for reliable performance in your Rolls Royce.
