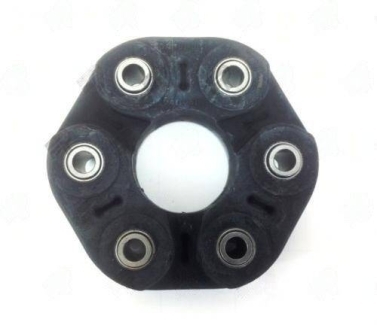

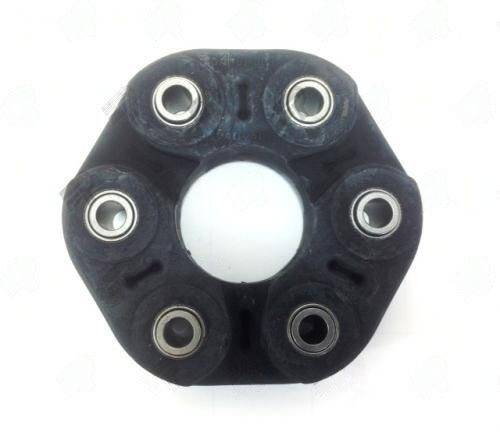

GAP01-003 – Rubber Flex Disc – Porsche Application – Bolt Circle Dia 110MM – Disc Width 38MM

The GAP01-003 is a critical component for Porsche vehicles, designed to absorb torsional vibrations between the transmission output and driveshaft input. With a bolt circle diameter of 110MM, this flex disc fits perfectly in the specified applications, ensuring optimal performance. The six bolt holes, each measuring 12MM in diameter, provide a secure attachment, while the 38MM disc width contributes to its ability to handle minor angular misalignment without the need for a universal joint.

One of the key benefits of the GAP01-003 is its role in reducing noise, vibration, and harshness (NVH) within the cabin. If you experience clunking on takeoff or vibrations at low speeds, it may be time to inspect this flex disc for visible cracking or deformation. Regular checks can prevent further driveline issues and maintain the performance of your vehicle.

• Application: Porsche
• Bolt Circle Diameter: 110MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 12MM
• Disc Width: 38MM
• Pilot Diameter: 18MM

When installing the GAP01-003, ensure that you check the bolt orientation and align the arrows or marks correctly. Torque the bolts to specification in a star pattern for even distribution. Regular inspection for cracks at the reinforcement sleeves is also recommended to prolong the life of this essential component.
