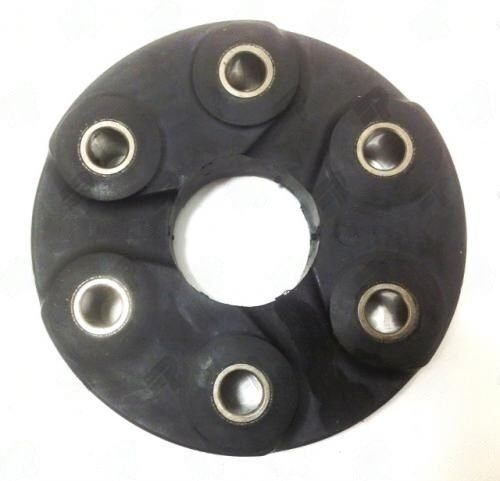

GAO-60 – Rubber Flex Disc – Gm Application – Bolt Circle Dia 50MM – Disc Width 12.5MM

GAO-60 is the flex disc you need when your GM vehicle starts showing signs of drivetrain stress. If you notice clunking on takeoff or vibrations at low speeds, it’s likely time to replace your flex disc. This part absorbs torsional vibrations between the transmission output and driveshaft input, helping to maintain smooth operation. With a bolt circle diameter of 50MM and a disc width of 12.5MM, the GAO-60 is engineered specifically for GM applications.

When the flex disc begins to fail, you might see visible cracking or deformation, which can lead to further issues down the line. The GAO-60 flex disc features four bolt holes, each with a diameter of 8MM, ensuring a secure fit and effective performance. This part compensates for minor angular misalignment, eliminating the need for a universal joint in certain setups, which can simplify your installation process.

For optimal performance, make sure to check the bolt orientation and alignment arrows during installation. Torque the bolts to specification in a star pattern to ensure even pressure distribution. Regular inspections for cracks at the reinforcement sleeves can help you catch potential failures before they escalate.

• Application: GM
• Bolt Circle Diameter: 50MM
• Bolt Hole Count: 4
• Bolt Hole Diameter: 8MM
• Disc Width: 12.5MM
