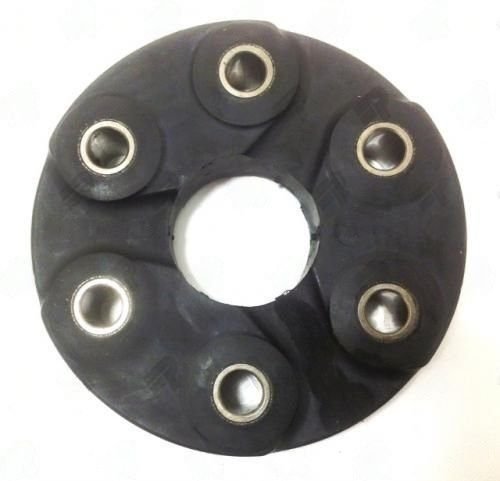

GAO-13 – Rubber Flex Disc – Opel Application – Bolt Circle Dia 96MM – Disc Width 30MM

GAO-13 is a Rubber Flex Disc specifically engineered for Opel applications. This component features a bolt circle diameter of 96MM, which is critical for ensuring proper alignment and fitment with the vehicle’s transmission output. The six bolt holes, each with a diameter of 12MM, provide secure mounting and stability, allowing the flex disc to effectively absorb torsional vibrations between the transmission and driveshaft.

The 30MM disc width contributes to the overall strength and durability of the component, making it capable of handling the demands of various Opel models. By compensating for minor angular misalignment, the GAO-13 eliminates the need for additional universal joints, streamlining the driveline assembly and reducing potential points of failure.

Common symptoms of a failing flex disc include clunking noises during takeoff, vibrations at low speeds, and visible cracking or deformation. Regular inspection of this component is essential to maintain optimal performance and NVH (noise, vibration, harshness) levels within the cabin.

• Application: Opel
• Bolt Circle Diameter: 96MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 12MM
• Disc Width: 30MM

When installing the GAO-13, ensure that bolt orientation aligns with the manufacturer’s specifications and torque the bolts in a star pattern to the recommended settings. This attention to detail will help maximize the lifespan and performance of the flex disc.
