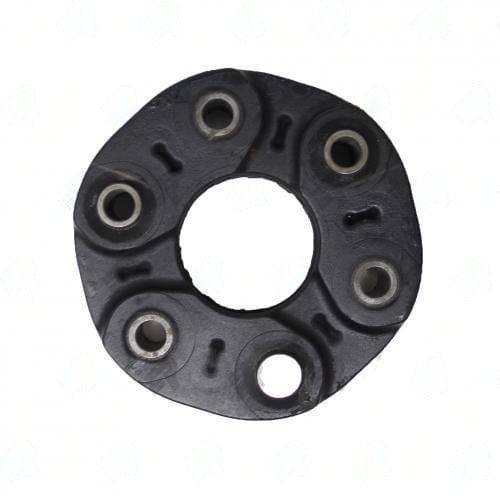

GAG01-008 – Rubber Flex Disc – Cadillac Application – Bolt Circle Dia 105MM – Disc Width 35MM
$98.06
0 in stock
Description
GAG01-008 is a crucial component for Cadillac vehicles, specifically designed to absorb torsional vibrations between the transmission output and the driveshaft input. When a Cadillac experiences clunking on takeoff or noticeable vibrations at low speeds, it’s often due to a failing flex disc. This part effectively compensates for minor angular misalignment, eliminating the need for a universal joint and significantly reducing NVH (noise, vibration, harshness) in the cabin.
With a bolt circle diameter of 105MM, a disc width of 35MM, and six bolt holes measuring 12MM each, the GAG01-008 is engineered to fit seamlessly into your Cadillac’s driveline. The pilot diameter of 18MM ensures proper alignment and stability during operation. If you notice visible cracking or deformation on your existing flex disc, it’s time to replace it with the GAG01-008 to restore your vehicle’s smooth performance.
- Application: Cadillac
- Bolt Circle Diameter: 105MM
- Disc Width: 35MM
- Bolt Hole Count: 6
- Pilot Diameter: 18MM
For installation, make sure to check the bolt orientation and align the arrows or marks properly. Torque the bolts to specification in a star pattern to ensure even pressure across the disc. Regularly inspect for cracks at the reinforcement sleeves to catch any issues early.
| Application |
CADILLAC |
|---|---|
| Bolt circle dia |
105MM |
| Bolt hole count |
6 |
| Bolt hole dia |
12MM |
| Disc width |
35MM |
| Partn number |
GAG01-008 |
| Pilot dia |
18MM |
| Remaining stock |
<10 |
