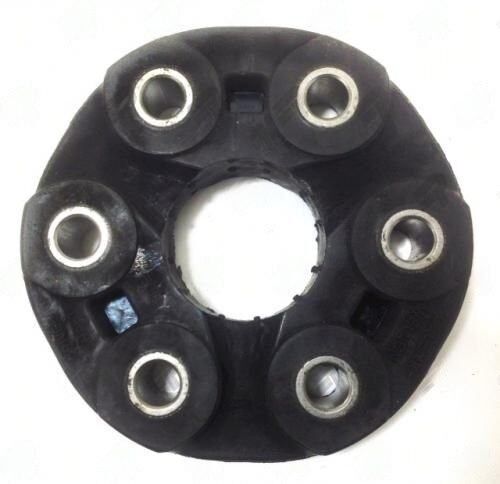

GAF-41 – Rubber Flex Disc – Ford Application – Bolt Circle Dia 96MM – Disc Width 30MM

GAF-41 is a crucial component for various Ford models, including the Escort, Granada, Sierra, Scorpio, and Transit. This rubber flex disc absorbs torsional vibrations between the transmission output and driveshaft input, ensuring a smoother ride and reducing NVH (noise, vibration, harshness) in the cabin. With a bolt circle diameter of 96MM and a disc width of 30MM, it’s engineered to handle the specific demands of Ford drivetrains.

One of the standout features of the GAF-41 is its ability to compensate for minor angular misalignment without the need for a universal joint. This flexibility is vital in maintaining driveline integrity, especially during aggressive driving or when the vehicle is loaded. Common failure symptoms include clunking on takeoff, vibrations at low speeds, and visible cracking or deformation of the disc. Regular inspection is essential to ensure optimal performance.

• Application: Fits Ford Escort, Granada, Sierra, Scorpio, Transit
• Bolt Circle Diameter: 96MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 12MM
• Disc Width: 30MM

When installing the GAF-41, always check the bolt orientation and alignment arrows. Torque the bolts to specification in a star pattern to ensure even pressure. Inspect for cracks at the reinforcement sleeves during installation. By keeping an eye on these details, you can extend the service life of your flex disc and maintain the performance of your Ford vehicle.
