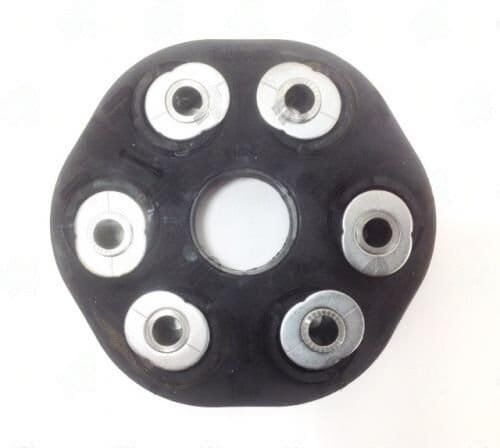

GAB01-027 – Rubber Flex Disc – Bmw Application – Bolt Circle Dia 110MM – Disc Width 42MM

GAB01-027 is a crucial Rubber Flex Disc designed for BMW vehicles, specifically fitting models like the 1ER, 3ER, 5ER, 6ER, 7ER, and X3. This component plays a vital role in absorbing torsional vibrations between the transmission output and driveshaft input, ensuring a smoother ride by reducing noise, vibration, and harshness (NVH) in the cabin.

Before installation, check the critical dimensions: the bolt circle diameter is 110MM, with a bolt hole count of 6 and a bolt hole diameter of 12MM. The disc width measures 42MM, and the pilot diameter is 18MM. These specifications are essential for proper fitment and function.

Common failure symptoms include clunking on takeoff, vibrations at low speeds, and visible cracking or deformation of the disc. To avoid installation errors, ensure that you align the bolt orientation correctly and follow the torque specifications in a star pattern. Inspect the flex disc for any cracks, especially around the reinforcement sleeves, as this can lead to premature failure.

• Check bolt orientation and alignment arrows before installation.
• Torque bolts to specification in a star pattern.
• Inspect for cracks at reinforcement sleeves.
• Ensure compatibility with BMW models: 1ER, 3ER, 5ER, 6ER, 7ER, X3.

By paying attention to these details, you can ensure that the GAB01-027 Rubber Flex Disc performs optimally, providing the necessary compensation for minor angular misalignment without the need for a universal joint.
