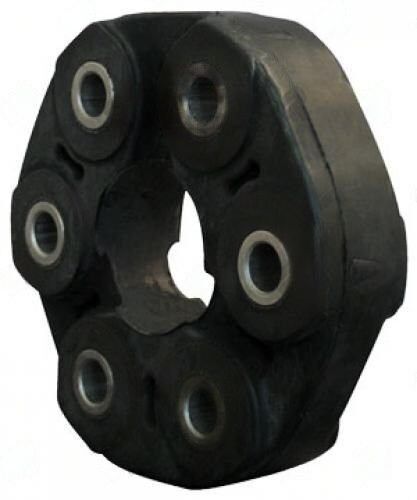

GAB01-009 – Rubber Flex Disc – Bmw Application – Bolt Circle Dia 78MM – Disc Width 28MM

GAB01-009 is a crucial component in the driveline of various BMW models, including the 1 Series, 3 Series, 5 Series, X1, Z3, and Z4. This rubber flex disc plays a vital role in absorbing torsional vibrations between the transmission output and driveshaft input, effectively compensating for minor angular misalignment. With a bolt circle diameter of 78mm and six bolt holes measuring 10mm each, this disc ensures a secure fit and reliable performance.

Engineered with a disc width of 28mm, the GAB01-009 flex disc is designed to reduce noise, vibration, and harshness (NVH) within the cabin, enhancing the overall driving experience. Common failure symptoms include clunking on takeoff, vibrations at low speeds, and visible cracking or deformation of the disc. Regular inspection is essential to maintain optimal performance.

• Application: Fits BMW 1ER, 3ER, 5ER, X1, Z3, Z4
• Bolt Circle Diameter: 78MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 10MM
• Disc Width: 28MM

When installing the GAB01-009, ensure proper bolt orientation and alignment according to the manufacturer’s specifications. Torque the bolts in a star pattern to avoid uneven stress on the flex disc. Regular maintenance and timely replacement of this component will help prolong the life of your vehicle's driveline.
