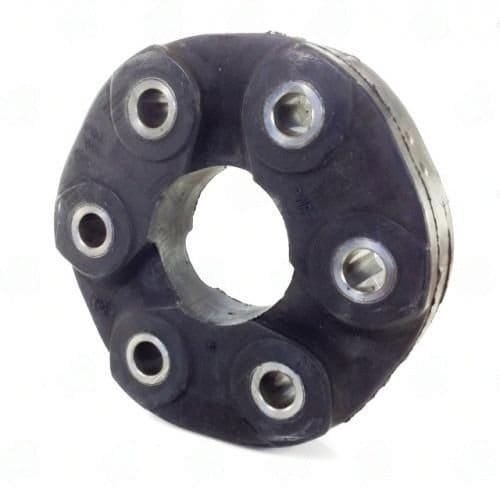

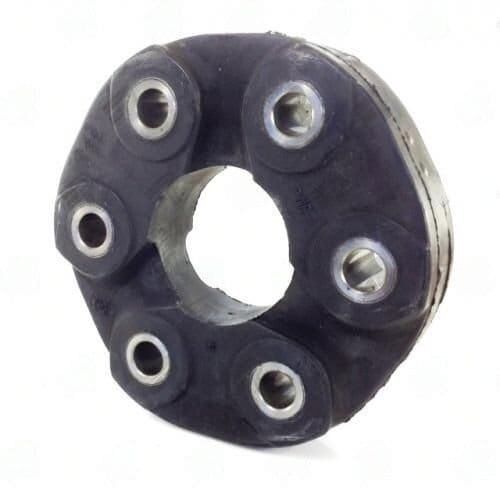

GAB-87 – Rubber Flex Disc – Bmw Application – Bolt Circle Dia 96MM – Disc Width 30MM

GAB-87 is a critical component for BMW drivetrains, specifically designed to absorb torsional vibrations between the transmission output and driveshaft input. This flex disc is essential for models like the 3 Series, 5 Series, 7 Series, X3, X5, and X6, where it plays a vital role in enhancing ride comfort by reducing noise, vibration, and harshness (NVH) in the cabin.

With a bolt circle diameter of 96MM and six bolt holes measuring 12MM in diameter, the GAB-87 ensures a secure fit and reliable performance. The disc width of 30MM allows for effective dampening of vibrations, compensating for minor angular misalignments without the need for additional universal joints. This design not only simplifies installation but also contributes to the longevity of the driveline components.

Failure symptoms such as clunking on takeoff or vibrations at low speeds can indicate a failing flex disc. Regular inspection for visible cracking or deformation is crucial to maintain optimal performance. When installing the GAB-87, ensure that bolt orientation aligns with the manufacturer’s specifications and torque the bolts in a star pattern to avoid uneven stress.

• Application: BMW (3ER, 5ER, 7ER, X3, X5, X6)
• Bolt Circle Diameter: 96MM
• Bolt Hole Count: 6
• Bolt Hole Diameter: 12MM
• Disc Width: 30MM

Choose the GAB-87 Rubber Flex Disc for reliable performance and enhanced driveline efficiency in your BMW.
