Brand:
2687602300510 Flange Yoke XS 180 Serrated 59×167.8 Bolt Circle Diameter 5.905inch FY2060-180
$157.58
21 in stock
15
People watching this product now!
Description
FY2060-180 UDS 68760 series flange yoke, XS180 serrated pilot. 150 mm (5.905 in) bolt circle, 4 holes at 15 mm, 59 x 167.8 mm flange. Match bolt circle and serrated pilot before ordering.
Full Description

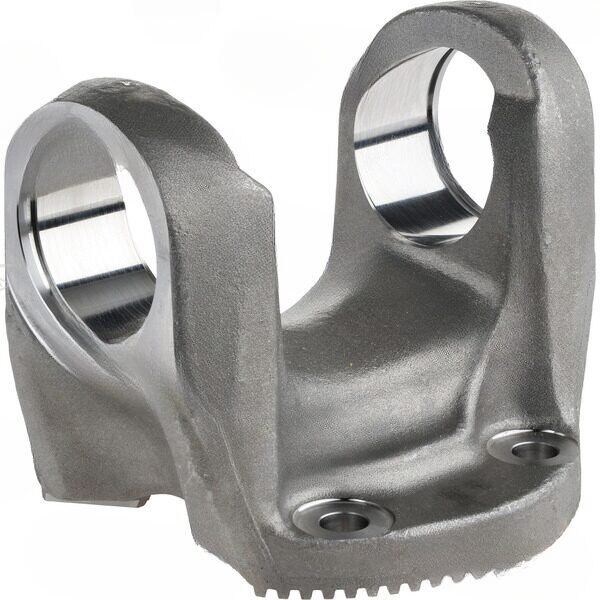

FY2060-180 UDS 68760 Series Flange Yoke — XS 180 Serrated
The FY2060-180 is a UDS 68760 series flange yoke with an XS 180 serrated pilot and 4-bolt pattern. The bolt circle diameter is 150 mm (5.905 inches) with 15 mm bolt holes. The product notes confirm this as a 59 x 167.8 mm flange yoke with the XS180 serrated interface, also referenced as part number 2687602300510. This is a metric heavy-duty flange configuration used in European commercial truck driveshafts.
Specifications
- Part Number: FY2060-180
- Brand: UDS
- Series: 68760
- Bolt Circle Diameter: 150 mm / 5.905 in
- Bolt Hole Diameter: 15 mm
- Bolt Holes: 4
- Pilot: XS 180 Serrated
- Flange Dimensions: 59 x 167.8 mm
- Cross-Reference: 2687602300510
When fitting the FY2060-180, verify the companion flange bolt circle is 150 mm with 4 holes at 15 mm diameter. The XS 180 serrated pilot engages the mating flange through a serrated interface — the companion flange must also carry the XS 180 serrated pattern for this yoke to center and seat correctly. A smooth-bore companion flange will not function with this serrated yoke.
The FY2060-180 is in the 68760 series, a metric heavy-duty platform common in European long-haul commercial trucks. The 59 x 167.8 mm designation refers to the trunnion cap dimensions at the U-joint ear. Confirm the mating U-joint uses the same 59 x 167.8 series cap dimensions. Cross-reference 2687602300510 is the full OE-style part number for this assembly. Match bolt circle and pilot specification before ordering.
Additional information
| Bolt circle dia | 150M | 5.905″ |
|---|---|
| Bolt hole dia | 15 |
| Brand | UDS |
| Notes | Flnage Yoke 59×167.8 XS180 |
| Partn number | FY2060-180 |
| Pilot dia | XS 180 |
| Series | 68760 |
| Bolt Holes | 4 |
