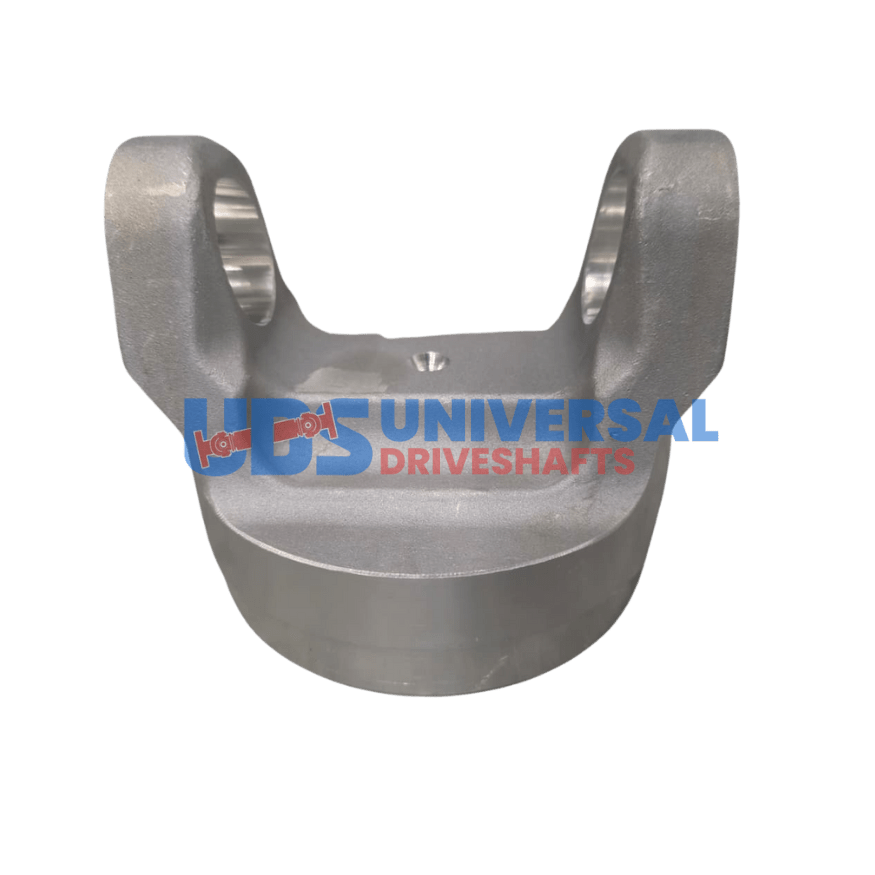

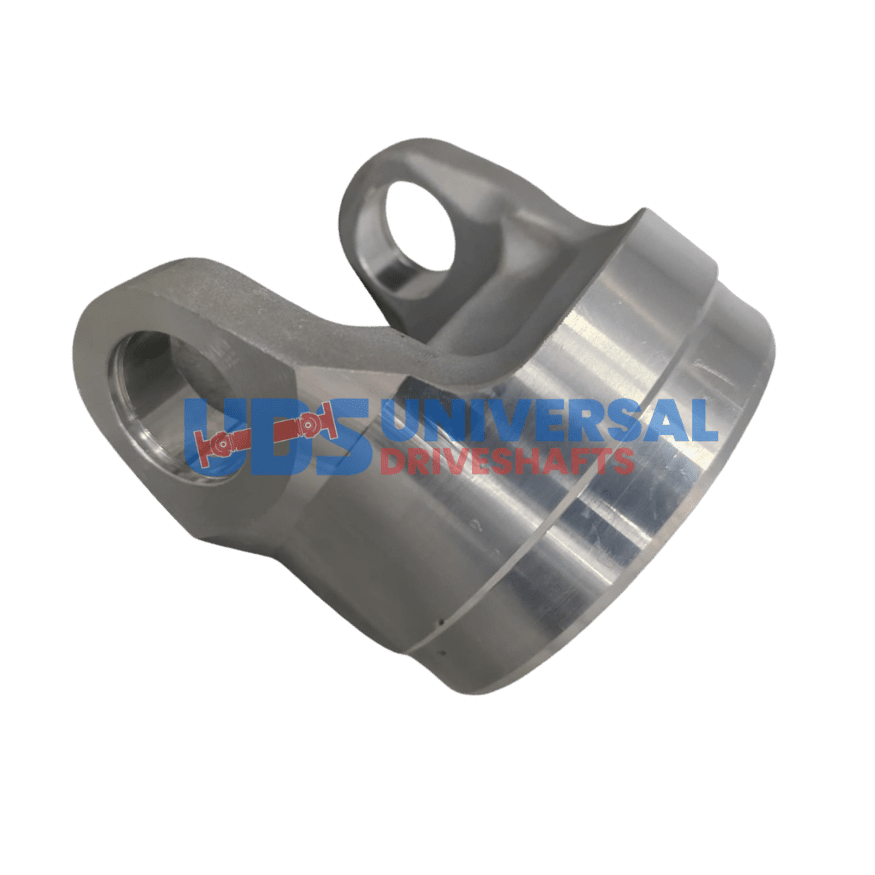

5526-506A Aluminum Weld Yoke 1550 , Fits : 5.000×0.125 Butt Dia: 4.757, Centerline To Weld: 2.750Inch
$70.79
9 in stock
Description
The 5526-506A Weld Yoke is a critical component for any driveline system, designed specifically for the 1550 Series. With a tube diameter of 5.000 inches, this yoke ensures a strong connection between the driveshaft and the transmission or differential. The 4.757-inch butt diameter provides a solid base for welding, enhancing the structural integrity of your assembly.
One of the standout features of the 5526-506A is its center U-joint to weld measurement of 2.750 inches. This dimension is crucial as it determines the effective engagement of the U-joint, allowing for optimal torque transfer and minimizing the risk of failure during operation. The use of 6061-T6 Aluminum not only reduces weight but also offers excellent strength-to-weight characteristics, making it suitable for high-performance applications.
- Series: 1550
- Tube Diameter: 5.000 inches
- Butt Diameter: 4.757 inches
- Center U-Joint to Weld: 2.750 inches
- Material: 6061-T6 Aluminum
When installing the 5526-506A, ensure proper spline engagement and alignment with the opposing yoke to prevent premature wear. This yoke is an excellent choice for fabrication shops and performance builders looking for reliability and efficiency in their driveline systems. Trust the 5526-506A for your next project and experience the difference in performance.
| Notes | 6061-T6 Aluminum |
|---|---|
| Series | 1550 |
| Material | ALUMINUM |
| Butt dia | 4.757 |
| Center u j to weld | 2.750" |
| Brand | UDS |
| Tube dia wall | 5.000X0.125 |
