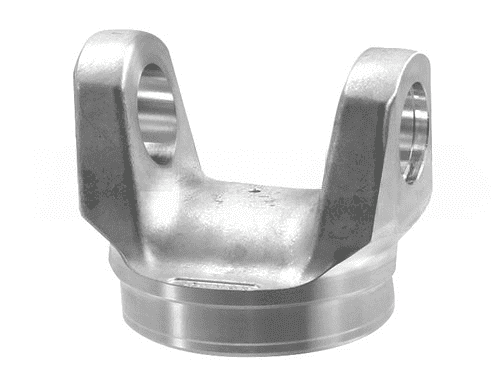

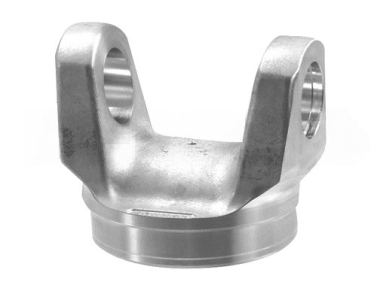

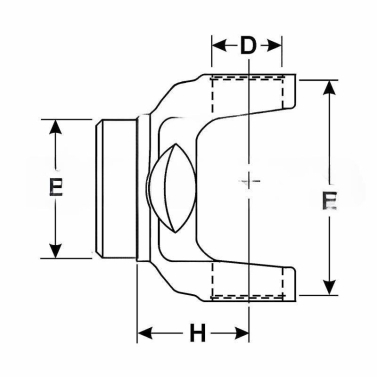

Aluminum Weld Yokes are crucial for connecting driveshafts to your vehicle’s transmission or differential. This specific yoke, made from 6061-T6 Aluminum, features a 1350 Series design, which means it’s built to handle the demands of high-performance applications. The 4.000″ tube diameter wall ensures robust support, while the 3.757″ butt diameter provides a precise fit for your driveline setup.
The 2.375″ center U-joint to weld measurement is critical for proper alignment and engagement with the U-joint, ensuring smooth operation and minimizing wear. This yoke is designed to be welded directly to the driveshaft tubing, offering a strong and reliable connection that can withstand the rigors of performance driving.
When installing this yoke, consider the following:
- Ensure proper spline engagement depth to avoid premature failure.
- Check phasing with the opposite yoke to maintain balance.
- Never force spline entry; it should slide in smoothly.
Using Aluminum for this yoke not only reduces weight but also enhances corrosion resistance, making it ideal for various applications. Whether you’re fabricating a custom driveshaft or replacing a worn component, this Aluminum Weld Yoke is a solid choice for any performance builder or fleet technician.
