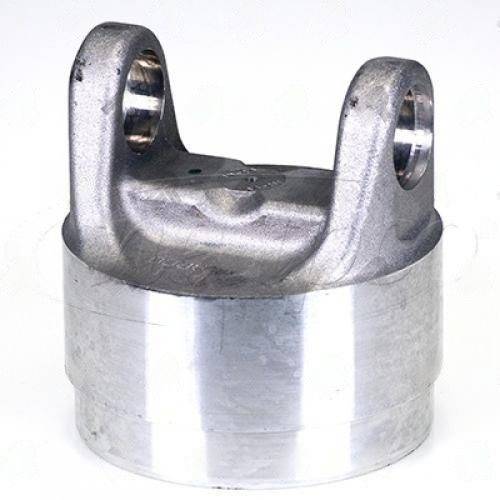

A48-28-5012 – Weld Yokes – 1480 Series – Butt Dia 4.757″ – Tube Dia Wall 5.000X0.125

A48-28-5012 is a robust weld yoke designed for the 1480 Series, featuring a butt diameter of 4.757 inches. This specific measurement is crucial as it ensures a secure fit with the corresponding U-joint, which is vital for maintaining driveline integrity. The 5.000 inch tube diameter with a wall thickness of 0.125 inches strikes a balance between strength and weight, making it suitable for various applications without adding unnecessary bulk.

The center U-joint to weld measurement of 3.500 inches is particularly important for ensuring proper alignment and phasing when connecting to the driveshaft. This alignment helps prevent vibrations and premature wear on the driveline components, which can lead to costly repairs down the line. The lightweight aluminum construction not only enhances performance but also contributes to improved fuel efficiency by reducing overall vehicle weight.

• Butt Diameter: 4.757 inches for secure U-joint fit
• Tube Diameter: 5.000 inches with a wall thickness of 0.125 inches
• Center U-joint to weld measurement: 3.500 inches for proper alignment
• Constructed from aluminum for a favorable strength-to-weight ratio
• Designed for 1480 Series applications, ensuring compatibility

When installing the A48-28-5012, ensure that the spline engagement is correct and that the phasing aligns with the opposite yoke. This attention to detail will help maintain the longevity and reliability of your driveline system.
