Brand:

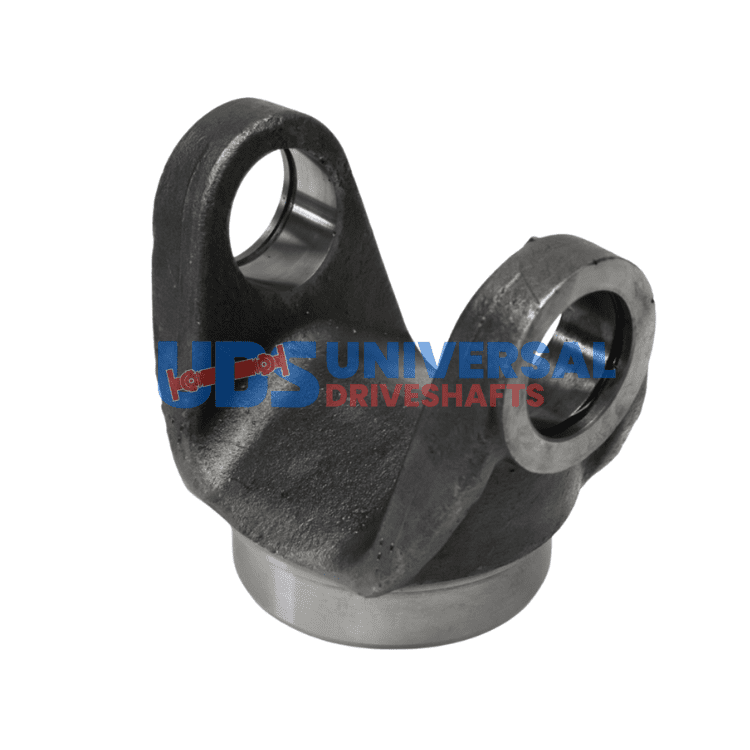

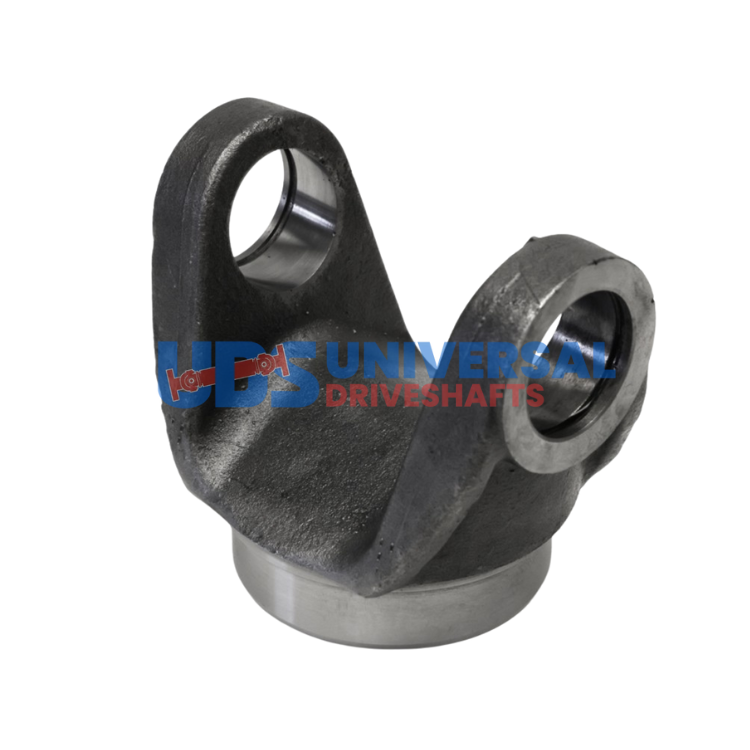

90-28-27 Tube Weld Yoke SPL90 Fits TubeL 4.000×0.134 Butt Dia: 3.734
$54.35
30 in stock
10 People watching this product now!
Description
The 90-28-27 is a component from the SPL90 series, crafted from high-quality steel for enhanced durability and performance. With a tube diameter of 4.000 inches and a wall thickness of 0.134 inches , it strikes a balance between strength and lightweight design.
The butt diameter measures 3.734 inches , ensuring a secure connection during assembly. A centerline to weld distance of 2.969 inches allows for precise positioning, while the joint angle of 22.500 degrees provides flexibility in installation. This part is designed for Meduim-duty applications, making it a reliable choice for various mechanical systems.
Additional information
| Butt dia | 3.734 |
|---|---|
| Center u j to weld | 2.969 |
| Material | STEEL |
| Partn number | 90-28-27 |
| Remaining stock | >10 |
| Series | SPL90 |
| Tube dia wall | 4.000X0.134 |
| Brand | UDS |
