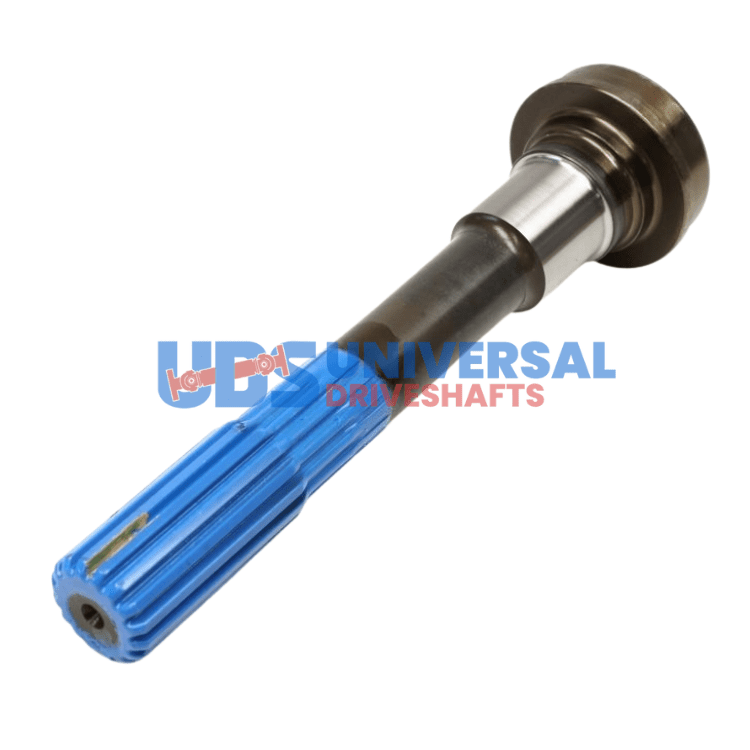

3-53-1951 Splined Midship Tube Shaft Splines: 1.500×16 , Fits: 3.000 X 0.083 Tube
$43.52
40 in stock
12 People watching this product now!
Description
The 3-53-1951 Stub & Midship Shaft features 15/16 x 1.500 splines and a 3.000″ tube diameter, designed for heavy-duty applications.
Full Description
3-53-1951 is a robust Stub & Midship Shaft designed for heavy-duty applications. If you’re experiencing vibrations that seem to correlate with vehicle speed, this component is likely the culprit. A worn or damaged midship shaft can lead to excessive play, causing vibrations that can be felt throughout the vehicle. This shaft features a tube diameter of 3.000" and a wall thickness of 0.083", ensuring it can handle the torque demands placed on it.
When diagnosing driveline issues, pay attention to the spline engagement. The 3-53-1951 has 15/16 x 1.500 splines, which must match your transmission output or transfer case exactly. If you notice a clunking noise during acceleration or deceleration, it could indicate that the splines are worn or not engaging properly. Additionally, the length of this shaft is critical; it measures 3.000" in splines length and 10.625" from end to weld, which must fit your application precisely to avoid misalignment.
- Verify spline count and diameter for compatibility.
- Check tube wall thickness (0.083") for durability.
- Ensure proper installation by checking phasing marks.
- Torque bolts to specification to prevent loosening.
- Balance the shaft if vibrations are present post-installation.
Replacing a worn midship shaft with the 3-53-1951 restores proper function and eliminates unwanted vibrations, ensuring your driveline operates smoothly.
Additional information
| Tube dia | 3.000 |
|---|---|
| Tube wall | 0.083" |
| Butt dia | 2.844 |
| Splines length | 3.000 |
| End to weld | 10.625 |
| Bearing dia | 1.574 |
| Brand | UDS |
| Notes | Heavy Duty |
| Style | Slip |
| Splines count dia | 15/16 x 1.500 |
