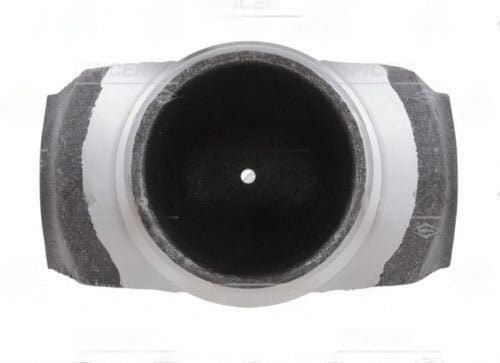

6.5-28-127 – Weld Yokes – 1810 Series – Butt Dia 3.984″ – Tube Dia Wall 4.500X0.259

When you’re about to install the 6.5-28-127 Weld Yoke, it’s essential to ensure you have the right fit for your application. This yoke is part of the 1810 Series and features a butt diameter of 3.984 inches, which is critical for secure connections. Before you proceed, check the spline engagement depth and ensure that the yoke aligns properly with the opposite yoke to maintain correct phasing.

The tube diameter wall of 4.500 inches with a thickness of 0.259 inches provides the strength needed for demanding applications. The center U-joint to weld measurement is 3.375 inches, so make sure your setup accommodates this distance. A common mistake during installation is forcing the spline entry; always ensure the splines match before sliding the yoke onto the shaft.

• Verify the butt diameter of 3.984 inches for compatibility.
• Check the tube diameter wall of 4.500X0.259 inches for structural integrity.
• Ensure the center U-joint to weld distance of 3.375 inches is correct.
• Inspect the yoke for any signs of wear or damage before installation.
• Always align the yoke properly to avoid vibration issues.

Using the 6.5-28-127 Weld Yoke from SPICER guarantees you’re working with a reliable component that can handle the rigors of high-performance applications. Keep these installation tips in mind to ensure a successful setup.
