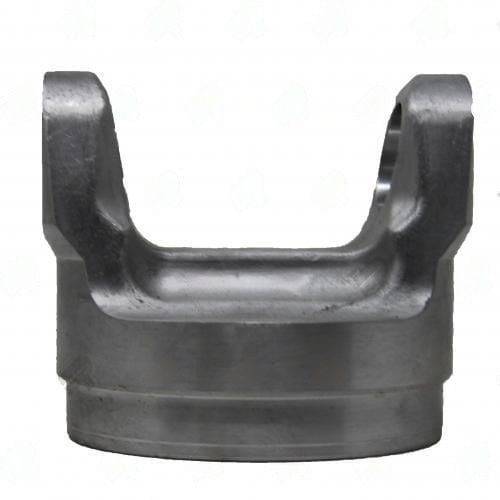

5526-506A – Weld Yokes – 1550 Series – Butt Dia 4.755″ – Tube Dia Wall 5.000X0.125
$116.89
Description
The 5526-506A weld yoke is a robust component from the 1550 Series, engineered for applications requiring a balance of strength and weight efficiency. With a butt diameter of 4.755 inches, this yoke provides a secure connection that is essential for maintaining driveline integrity. The aluminum construction not only reduces weight but also enhances durability, making it suitable for various performance and fabrication applications.
Key specifications include a tube diameter wall of 5.000 inches with a thickness of 0.125 inches, which ensures that the yoke can withstand significant torque loads while remaining lightweight. The center U-joint to weld distance measures 2.750 inches, allowing for precise alignment during installation. This configuration is particularly important when connecting to the transmission or differential, as it ensures proper phasing and engagement.
- Butt Diameter: 4.755 inches
- Tube Diameter Wall: 5.000X0.125 inches
- Center U-Joint to Weld: 2.750 inches
- Material: Aluminum for reduced weight
- Series: 1550 for enhanced torque handling
When installing the 5526-506A, ensure that the spline engagement depth is correct and that the yoke is phased properly with its counterpart. This attention to detail will prevent premature wear and failure, ensuring reliable performance in your driveline system.
| Butt dia |
4.755 |
|---|---|
| Center u j to weld |
2.750" |
| Material |
ALUMINUM |
| Partn number |
5526-506A |
| Remaining stock |
<10 |
| Series |
1550 |
| Tube dia wall |
5.000X0.125 |
| Brand |
UDS |
