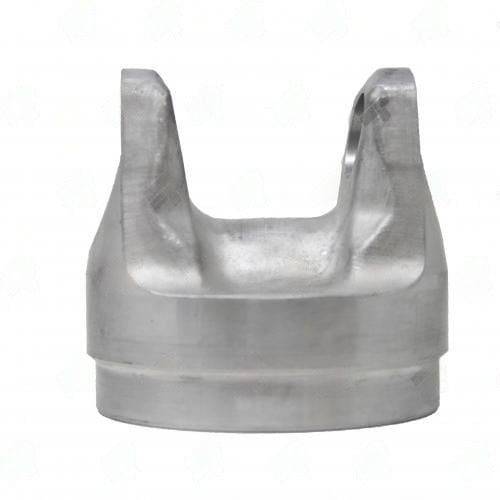

4826-506A – Weld Yokes – 1480 Series – Butt Dia 4.757″ – Tube Dia Wall 5.000X0.125
$75.55
Description
The 4826-506A is a precision-engineered weld yoke from the 1480 Series, designed to handle significant torque loads while maintaining a lightweight profile. This yoke features a butt diameter of 4.757 inches, which ensures a secure connection to the driveshaft, while the centerline to weld distance of 3.000 inches allows for optimal alignment during installation. The aluminum construction not only reduces weight but also provides excellent strength and durability, making it suitable for various applications.
When installing the 4826-506A, it’s crucial to ensure proper spline engagement and alignment with the opposite yoke to prevent premature wear or failure. The tube diameter wall of 5.000 inches with a thickness of 0.125 inches strikes a balance between rigidity and weight, making it ideal for light-duty applications.
- Butt Diameter: 4.757 inches
- Center U J to Weld: 3.000 inches
- Material: Aluminum
- Series: 1480
- Tube Diameter Wall: 5.000X0.125
In summary, the 4826-506A weld yoke is engineered for reliable performance in demanding environments. Its design addresses the need for efficient torque transfer while maintaining a lightweight structure, making it a vital component in any driveline assembly.
| Butt dia |
4.757 |
|---|---|
| Center u j to weld |
3.000" |
| Material |
ALUMINUM |
| Partn number |
4826-506A |
| Remaining stock |
<10 |
| Series |
1480 |
| Tube dia wall |
5.000X0.125 |
| Brand |
UDS |
