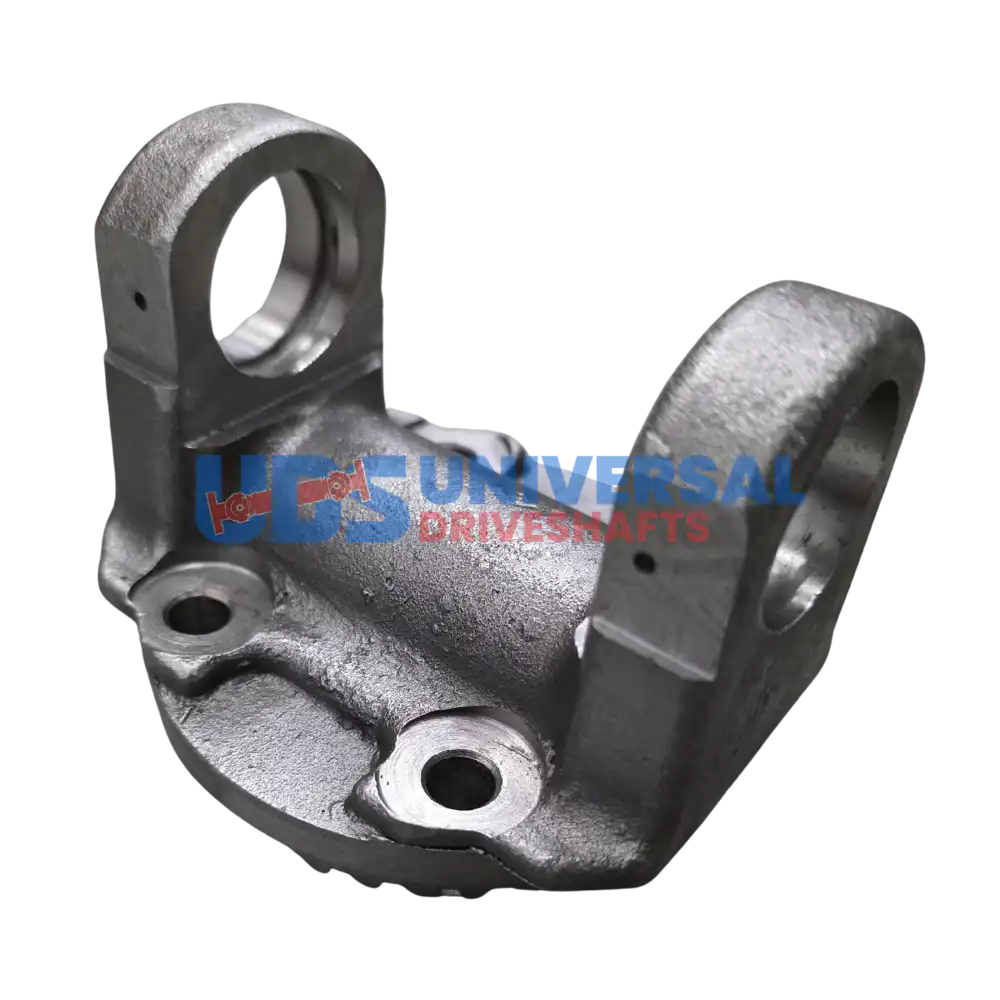

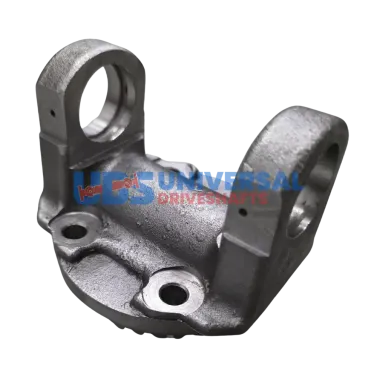

3R02-291 Flange Yoke 3R Rectangle Pattern 1.871 x 2.232 Serrated, Bolt Circle Diameter 2.913 Dodge Front Driveshafts 40019801
$27.97
30 in stock
15
People watching this product now!
Description
3R02-291 Flange Yoke — 3R series, 2.913 bolt circle | SERRATED pilot | 4×0.334 bolt holes | 2.000″ CJ-to-flat. Complete bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
Replacing a worn or damaged flange yoke starts with getting the right part. The 3R02-291 flange yoke is dimensioned for one bolt circle, one pilot diameter, and one drivetrain series — 3R series. A mismatched bolt circle means the yoke won't seat flat. A wrong pilot means the driveshaft runs off-center. The 3R02-291 flange yoke removes both risks.
3R02-291 Flange Yoke — 3R Series Specifications & Fitment
The 3R series covers metric 3-bolt flange — European and import platforms. The 3R02-291 flange yoke specs: 2.913 bolt circle | SERRATED pilot | 4x0.334 bolt holes | 2.000" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match. Before ordering the 3R02-291 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.Key Features
- Series: 3R — built for metric 3-bolt flange — European and import platforms
- Bolt circle: 2.913 — must match axle/diff flange hole pattern exactly
- Pilot dia: SERRATED — centers yoke on companion flange, no play allowed
- 4 bolt holes at 0.334 — verify hole count and size
- CJ-to-flat: 2.000" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
Specifications
- SKU: 3R02-291
- Brand: UDS
- Series: 3R
- Bolt Circle: 2.913
- Pilot Dia: SERRATED
- Bolt Holes: 4
- Bolt Hole Dia: 0.334
- CJ to Flat: 2.000"
Additional information
| Series | 3R |
|---|---|
| Bolt circle dia | 2.913 |
| Bolt hole dia | 0.334 |
| Bolt Holes | 4 |
| Pilot type | SERRATED |
| Cj to flat | 2.000 |
| Pilot dia | SERRATED |
