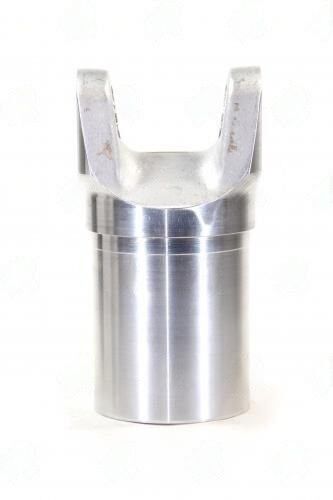

3526-35CF – Weld Yokes – 1350 Series – Butt Dia 3.500″ – Tube Dia Wall 3.790X0.145
$194.52
Description
The 3526-35CF is a robust weld yoke from the 1350 Series, specifically engineered for carbon fiber applications. With a butt diameter of 3.500 inches, this yoke provides a precise fit for the corresponding U-joint, ensuring optimal power transfer and reliability in your driveline setup. The aluminum construction balances weight and strength, making it an excellent choice for performance builds.
The tube diameter wall measures 3.790 inches with a wall thickness of 0.145 inches, which contributes to its durability while keeping the overall weight manageable. The centerline to weld distance of 2.250 inches is critical for maintaining correct alignment during installation, which helps prevent premature wear and failure.
When installing the 3526-35CF, consider the following:
- Ensure proper alignment with the opposite yoke to avoid vibration issues.
- Check spline engagement depth to guarantee a secure fit.
- Use appropriate torque specifications for fastening to companion flanges.
This yoke is a reliable choice for those looking to enhance their driveline performance while utilizing lightweight materials. The 3526-35CF is not just a part; it’s a key component in achieving the desired performance in high-demand applications.
| Butt dia |
3.500" |
|---|---|
| Center u j to weld |
2.250" |
| Material |
ALUMINUM |
| Notes |
USED FOR CARBON FIBER APPLICATIONS |
| Partn number |
3526-35CF |
| Remaining stock |
<10 |
| Series |
1350 |
| Tube dia wall |
3.790X0.145 |
| Brand |
UDS |
